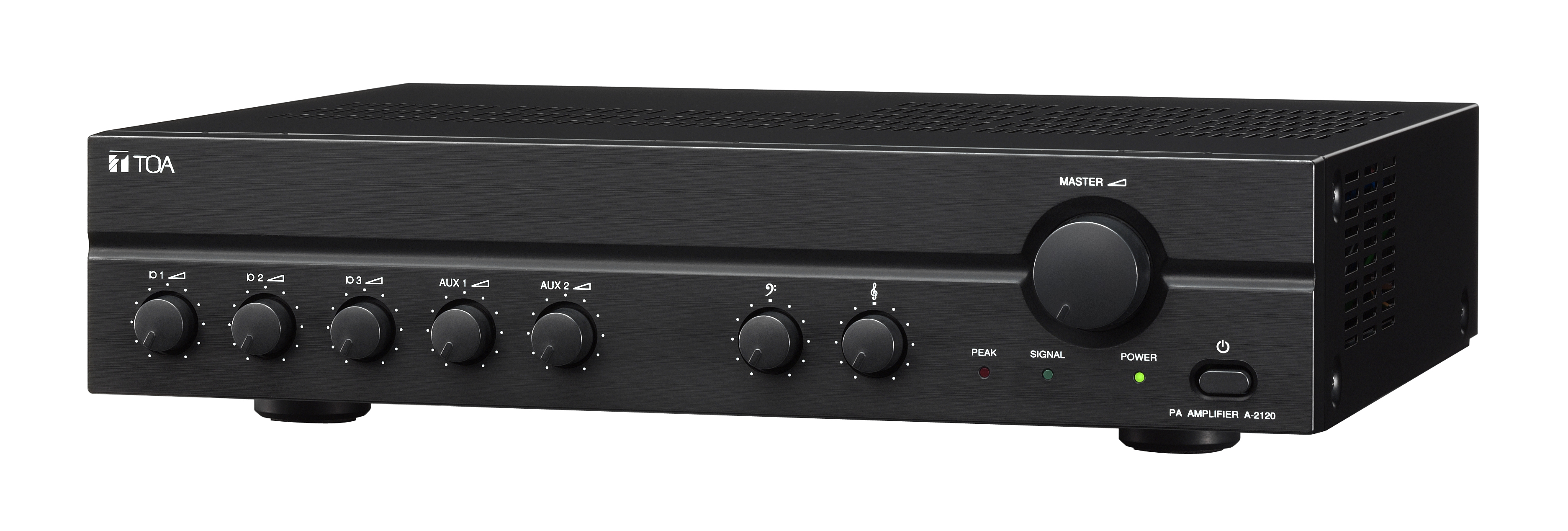

A-2060 Mixer Power Amplifier (CE version)

A-2060 CE

The A-2060 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

Specification
* 0 dB = 1 V
Power Source 220 - 240 V AC
Rated Output 60 W
Power Consumption 72 W (EN60065)
Frequency Response 50 Hz - 20 kHz (±3 dB)
Distortion 1% or less at 1 kHz
Input MIC 1: -60 dB*
MIC 2
AUX 1
Mute: Contact pin 4 - 5 closure input (for MIC 1)
Output Speaker out: Balanced (floating)
distance between barriers: 8.3 mm (0.33")
High impedance: 170 Ω (100 V)
Low impedance: 4 Ω (15.5 V)
Rec out: 0 dB*
Phantom Power DC +21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact in MIC 1 DIN type connector.
Finish Panel: ABS resin
Case: Steel plate
Dimensions 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54 × 3.97" × 11.04)
Weight 7 kg (15.43 lb)
