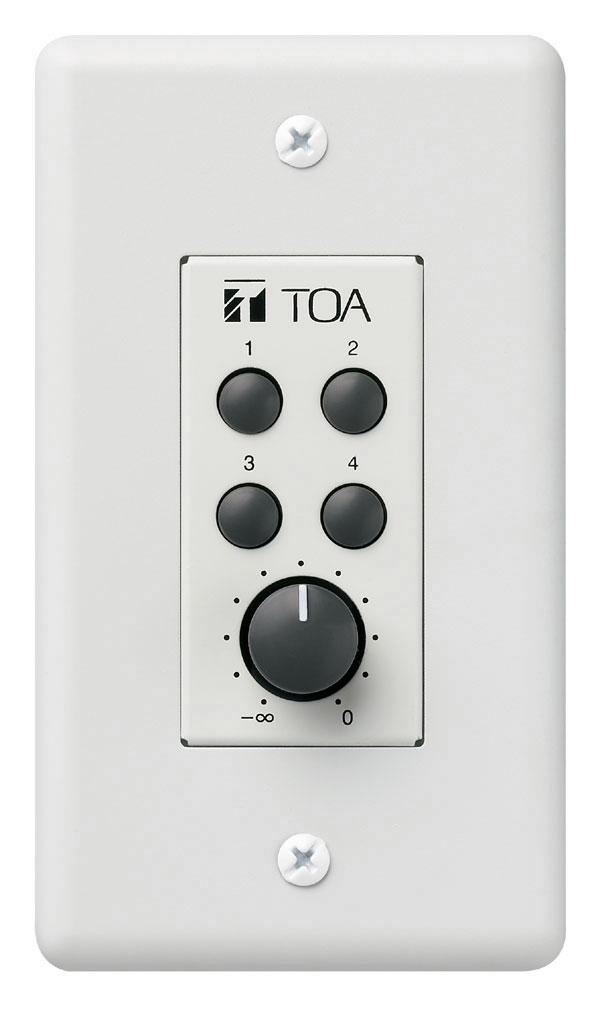

ZM-9002 Remote Panel
The ZM-9002 is a remote control switch/volume panel used with the 9000 series amplifiers. It adds 4 amplifier control inputs and 1 remote volume control, and can be mounted in an American Standard 1-gang electrical box in the wall.
|Applicable Cable||Single conductor shielded cable|
|Line Resistance||50 Ω or less (per line)|
|Terminal||M3 screw terminal, distance between barriers: 7.62 mm|
|Operating Temperature||-10℃ to +40℃|
|Finish||Surface-treated steel plate, white, paint|
|Dimensions||72 (W) × 127 (H) × 56 (D) mm|
|Accessory||Box mounting screw (No.6-32UNC × 30) …2,
Box mounting screw (M4 × 30) …2, Panel mounting screw …2
- Note: Since no electrical box is supplied with the unit, prepare it separately.
