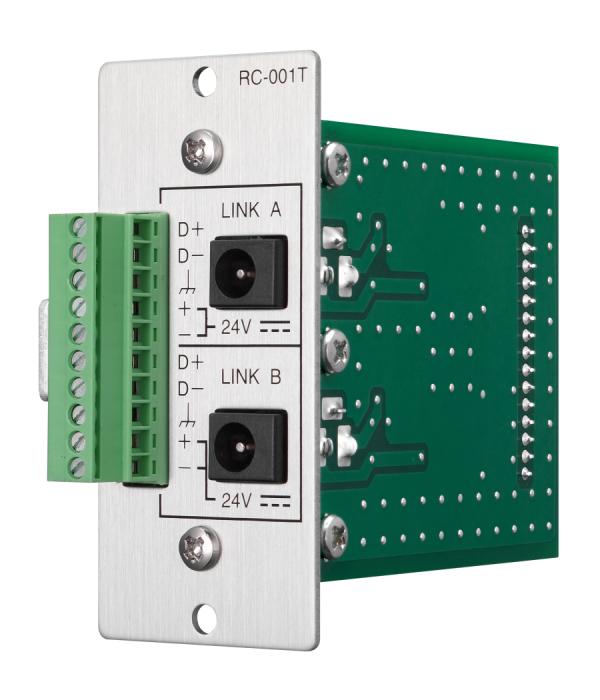

RC-001T Remote Control Module

RC-001T

The RC-001T is an interface module to connect between the 9000M2 Series amplifier and the ZM-9011, ZM-9012, ZM-9013, or ZM-9014 Remote control panel of data communication type. Up to 16 remote control panels can be connected to the RC-001T.

Specification
Power Source 6 V DC
Current Consumption 30 mA or less
Terminal Removable terminal block (10 pins)
Power Input 24 V DC input × 2
(Applicable AC adapter: AD-246 (option), power supply to Remote Control Panels)
Adaptable DC plug: 9.5 (L) × 5.5 (OD) × 2.1 (ID) mm (0.37" × 0.22" × 0.08")
Connection Cable Shielded CPEV cable (paired data line and paired power line) or
Category 5 twisted pair cable for LAN (CAT5-STP)
Maximum Cable Distance 800 m (874.89 yd) in total
Connectable Number of Remote Control Panels Maximum 16 units (2 link connectors used)
Operating Temperature -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm (1.38" × 3.07" × 3.6")
Weight 80 g (0.18 lb)
Accessory Module mounting screw …2, Removable terminal plug (10 pins) …1
