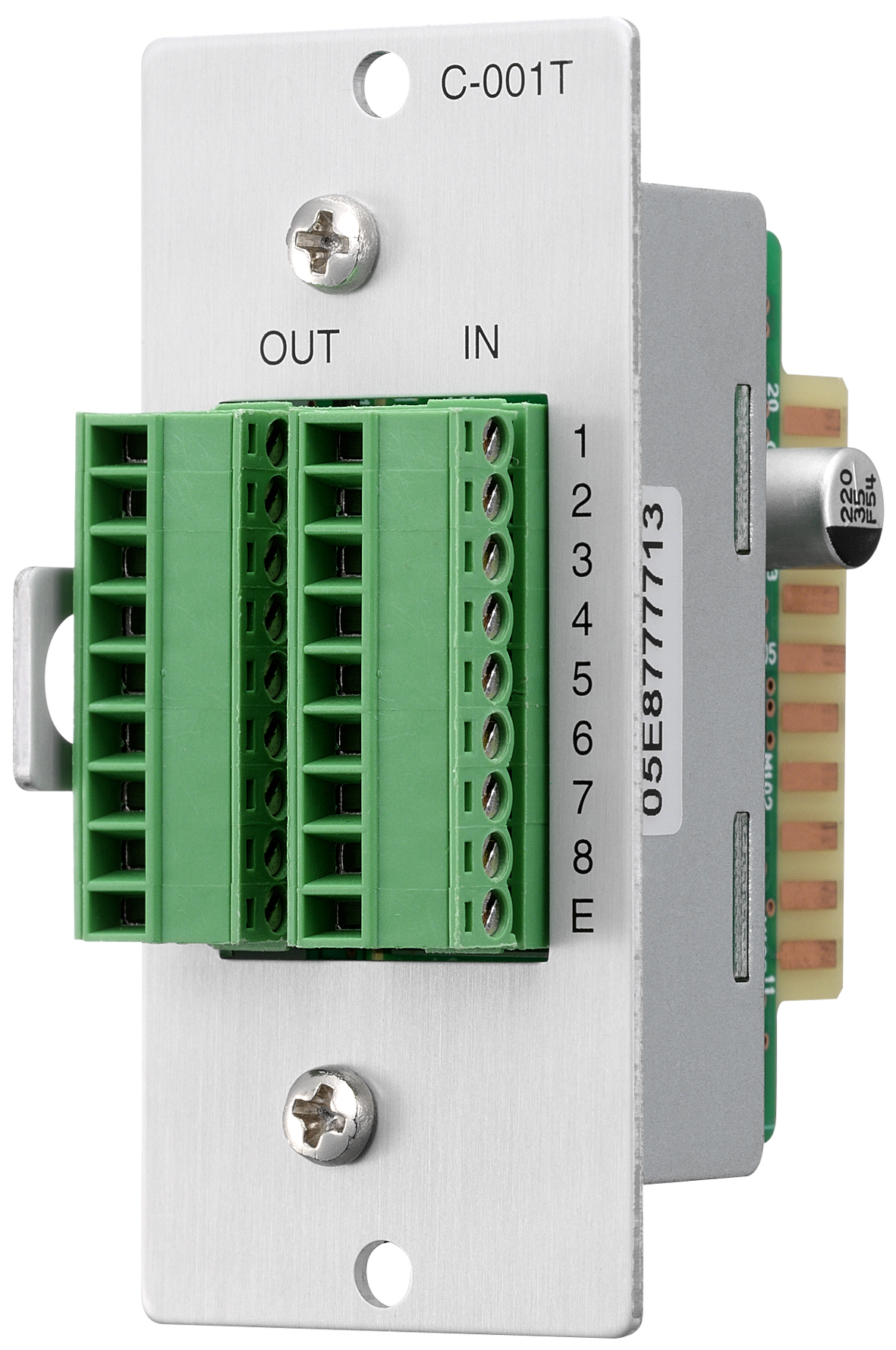

C-001T Input/Output Control Module

C-001T

The C-001T is a Control I/O expansion module designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 preinstalled inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T is used.

Specification
Power Source 6 V DC
Current Consumption 15 mA
Control Input 8 channels, open voltage: 3.3 V DC, short-circuit current: under 1 mA,
removable terminal block (9 pins)
Control Output 8 channels, open collector output, withstand voltage: 27 V DC,
control current: max. 50 mA, removable terminal block (9 pins)
Operating Temperature -10℃ to +40℃
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm
Weight 62 g
Accessory Removable terminal plug (9 pins) …2, Module mounting screw …2
