S4.4 Series

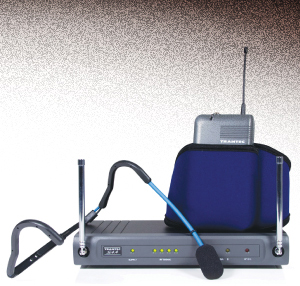

Aerobic System
Aerobic System

Aerobic System

  • S4.4 Receiver
  • S4.4 Beltpack
  • MIC-X66

S4.4 ReceiverS5.5 Receiver

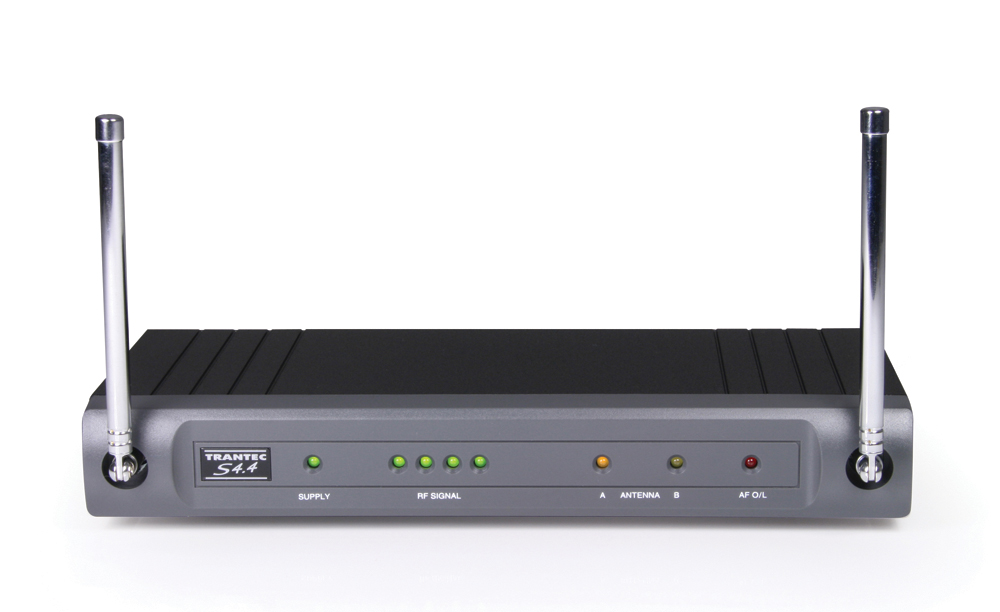

S4.4 Receiver
  • Four switchable licence free frequencies
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED's show AF Peak level, RF Level, and Diversity Channel A or B
  • Professional metal enclosure
  • 19" rack mount option for one or two receivers
S4.4-RX
Power Consumption 100 mA (12 V DC)

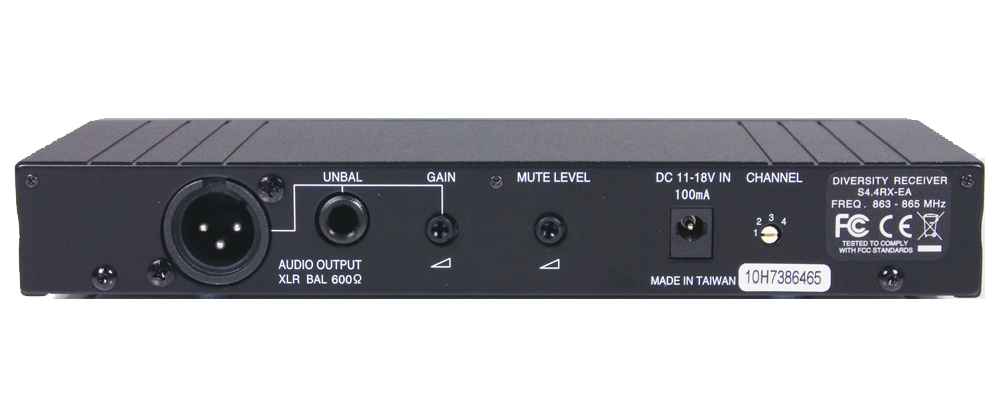

Audio Output Balanced output: +16 dB(※)(max), 600 Ω, balanced, XLR-3-31 type connector
Unbalanced output: +10 dB(※)(max), 600 Ω, unbalanced, phone jack
※0dB=0.775V
Receiving Sensitivity Over 90 dB, S/N ratio (20 dB μV input, 40 kHz deviation)
Squelch Sensitivity 18 - 40 dB μV variable
Indicator ANT A/B, Audio (peak), RF level, Power
S/N Ratio Over 95 dB (A-weight, unbalanced output)
Harmonic Distortion Under 1% (typical)
Frequency Response 100 - 15,000 Hz, ±3 dB
Operation Temperature -10°C to +45°C
Dimensions 214 (W) x 35 (H) x 100.5 (D) mm(8.43"×1.38"×3.96") (excluding antenna)
Weight 580g(1.28lb)
Frequency Bands 691-693, 719-721, 742-744, 863-865 MHz
4 Channel Capability
