WS-300 UHF Wireless Set

WS-300

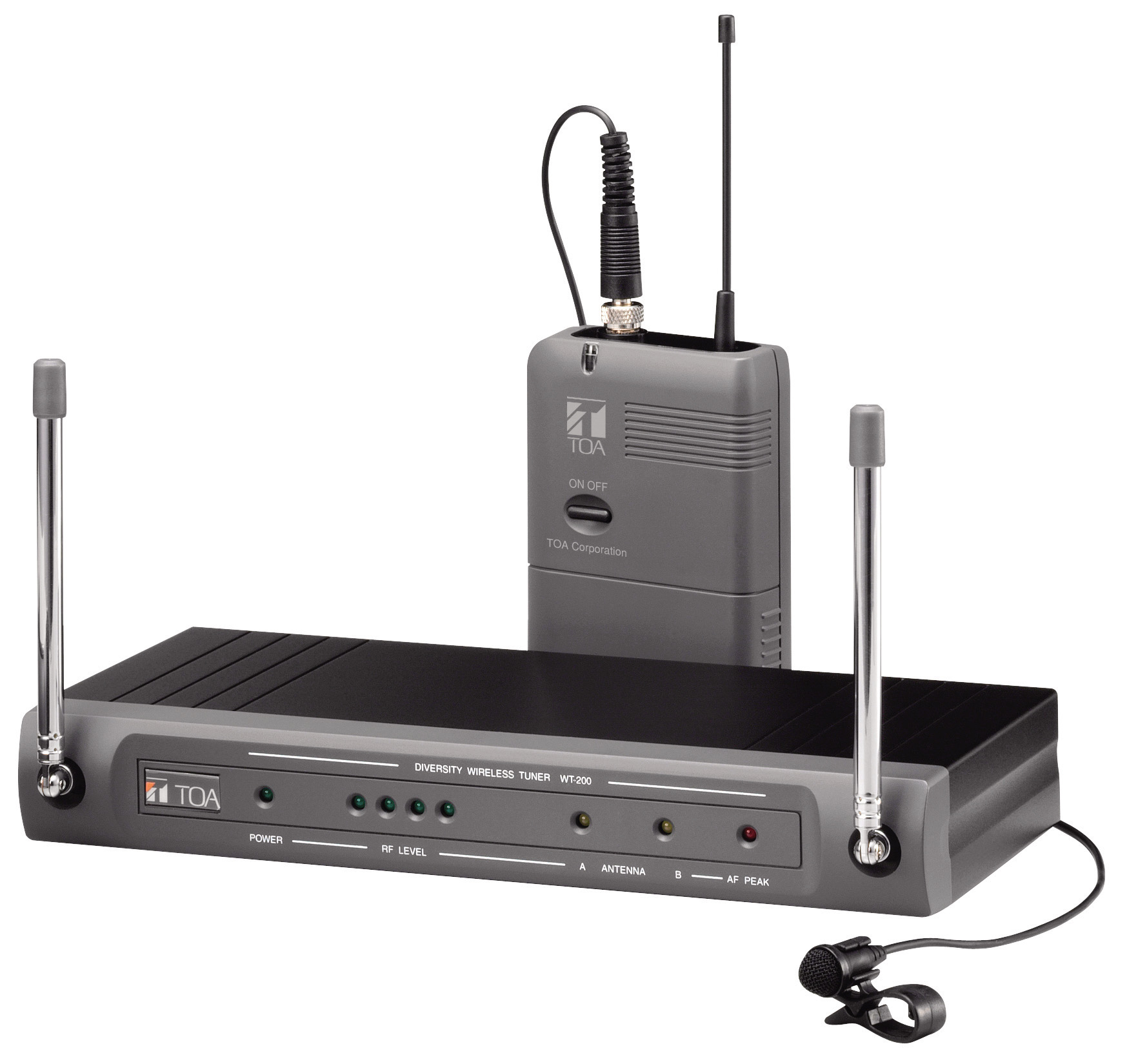

The WS-300 includes a lavalier wireless microphone and a diversity tuner. The lavalier wireless microphone has been manufactured for use with a UHF system. It employs an omni-directional electret condenser microphone element and has been designed for use in speech reinforcement applications. The built-in compressor-expander circuit minimizes the influence from ambient noise. The diversity tuner is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Product Composition	Lavalier wireless microphone …1, Tuner …1
Frequency Range	719.025 - 864.850 MHz(*1)
Channel Selectable	4 channels
Accessory	AC - DC adapter(*2) …1

Wireless microphone

Microphone Element	Back electret condenser: Omni-directional
RF Carrier Power	Max. 10 mW
Modulation System	PLL synthesizer
Mic Input Connector	φ3.5 mini jack
Battery	6LR61
Battery Life	Approx. 10 hours
Indicator	Battery status LED
Finish	Resin, coating
Dimensions	62 (W) × 102 (H) × 31.5 (D) mm (excluding antenna)
Weight	90 g

Wireless tuner

Power Source	AC mains (supplied AC-DC adapter must be used)
Power Consumption	100mA (12V DC)
Receiving System	Double super-heterodyne
Audio Output	Balanced output: +16 dB(3)(Max.), 600 Ω, balanced, XLR-3-31 type connector Unbalanced output: +10 dB(3)(Max.), 600 Ω, unbalanced, phone jack
Antenna	Rod antenna
Receiving Sensitivity	Over 90dB, S/N ratio (20 dBμV input, 40k Hz deviation)
Squelch Sensitivity	18-40 dBμV variable
Indicator	ANT A/B, Audio (peak), RF level, Power
Harmonic Distortion	Under 1% (typical)

Frequency response 100 - 15,000 Hz, ±3 dB

Operation Temperature	-10℃ to +45℃
Finish	Front Panel: Resin, gray
Dimensions	214(W) x 35(H) x 100.5(D) mm (excluding antenna)
Weignt	580 g

(*3) 0 dB = 0.775 V
