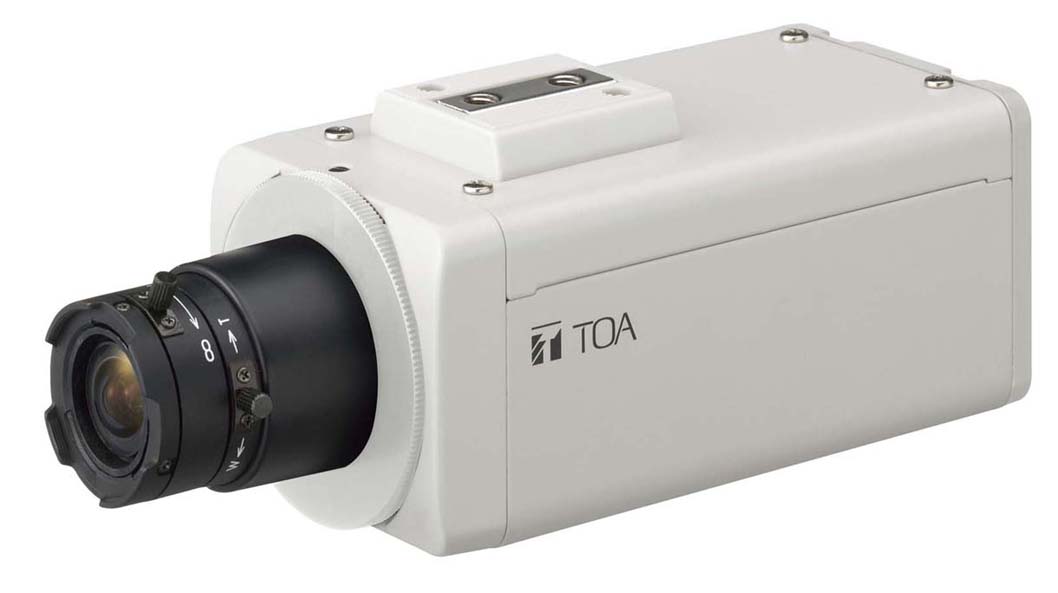

C-CC364 Wide Dynamic Range Color Camera
C-CC364 PL
This high-sensitivity color camera automatically switches from color to black-and-white mode under poor lighting conditions to improve sensitivity (Day & Night function*). The 64X electronic sensitivity enhancer and wide dynamic circuitry combine to ensure clear surveillance in dark locations or in backlight conditions. With the menu key, camera's function can be set, and color and brightness can be adjusted. Also they can be remotely controlled in combination with the camera remote unit. * When using the Day & Night function, use an optional near-infrared compatible lens.
| Power Source | 24 V AC, 50/60 Hz or 12 V DC |
|---|---|
| Power Consumption | 4 W (maximum current: 800 mA) |
| Image Device | 1/3 type IT-CCD |
| Number of Effective Pixels | 752 (H) × 582 (V) (440,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.625 kHz, Vertical: 50.00 Hz |
| Video Output | VBS 1.0 V (p-p), 75 Ω, BNC |
| Synchronizing System | Internal /Line Lock (phase adjustable) |
| Resolution | Horizontal: 500 lines, Vertical: 410 lines |
| S/N Ratio | 50 dB (AGC OFF) |
| Minimum Illumination | 0.5 lx (350 mV), 0.1 lx (140 mV) (F1.0) (sensitivity up: OFF) (color mode) 0.01 lx (F1.0) (sensitivity up: ON) (B&W mode, incandescent lamp) |
| Automatic Electric Shutter Range | 1:2400 (F1.4 - 68) |
| Dynamic Range | 46 dB (backlight compensation: WIDE DYNAMIC operation) |
| Backlight Compensation | WIDE DYNAMIC/ON/OFF |
| Shutter Speed | 1/50, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| AGC | Auto/Fixed/OFF |
| Sensitivity Up | OFF, 2, 4, 6, 8, 10, 16, 24, 32, 64 times |
| White Balance Mode | ATW/AWB/Manual |
| Character Display | Up to 16 characters (alphanumeric and symbols) |
| Other Function | Privacy Masking, Electronic Zoom (2×), Horizontal/Vertical reverse, Synchronization position switching (DIP switch), Flickering reduction (DIP switch), Focus adjustment switch (DIP switch), Chroma Level: Normal/Manual (MIN. - MAX.), Enhancer: Normal/Manual (soft - sharp) |
| Alarm Input | 1 channel, no-voltage make contact input, open voltage: 10 V DC, short-circuit current: Under 5 mA, loop resistance: Under 200 Ω (alarm output from the camera remote unit), screwless connector, motion detector (alarm output from the camera remote unit) |
| Color/B&W Switching Input | 1 channel, no-voltage make contact input, open voltage: 10 V DC, short-circuit current: Under 5 mA, loop resistance: Under 200 Ω, screwless connector |
| Lens Mount | CS mount |
| Auto-Iris Lens Output | DC input type/VIDEO input type (4 pin connector) |
| Operating Temperature | -10℃ to +50℃ |
| Operating Humidity | Under 90% RH (no condensation) |
| Applications | Indoor use |
| Finish | Case: Surface-treated steel plate, sand gray |
| Dimensions | 69.5 (W) × 65.1 (H) × 137.1 (D) mm |
| Weight | 450 g |
