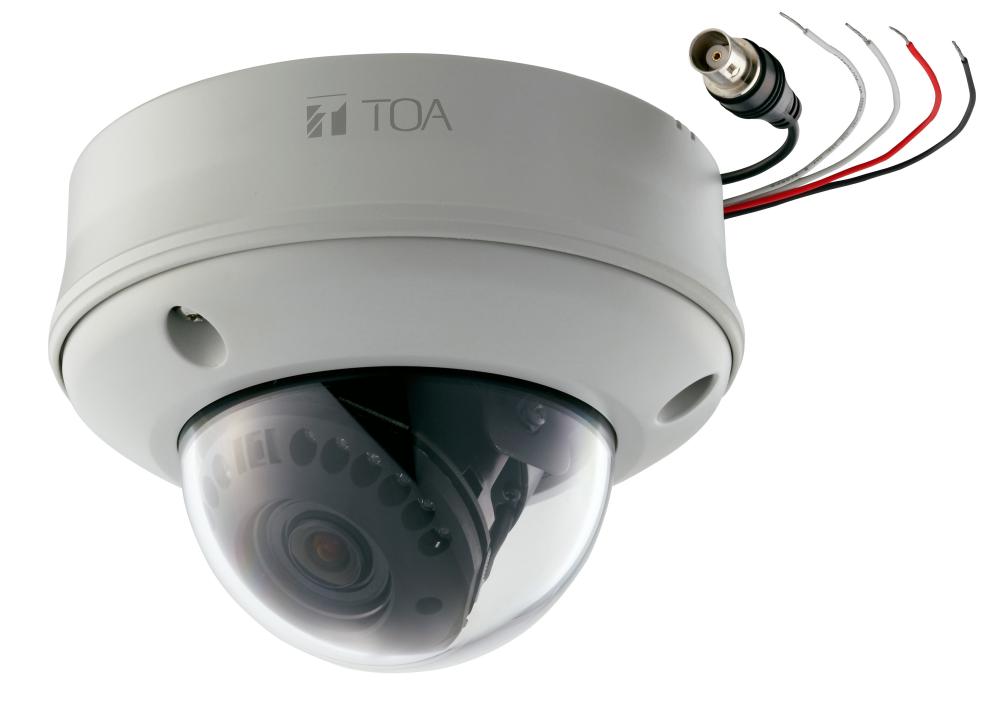

C-CV854R-3 Vandal Resistant Day/Night IR Camera
C-CV854R-3 CU
The C-CV854R-3 is a Vandal Resistant Day/Night IR Camera equipped with a 1/3 type CCD. It functions as a color camera (day mode) in bright locations and as a high-sensitivity black & white camera (night mode) in dark locations. Since the camera's built-in infrared LED illuminator lights in night mode, video surveillance is possible even in no light conditions, allowing the camera to be used for around-the-clock surveillance. Noise reduction function enables low noise, clear images to be viewed even under poor lighting conditions. Its dust-proof and waterproof (IP66) construction permits it to be mounted to an outdoor wall or ceiling without using a special device. Since the camera unit is constructed of die-cast aluminum alloy and its dome section is made of polycarbonate, the C-CV854R-3 ensures high resistance tostrong impacts. It features a 3-axis (horizontal, vertical and rotation) adjustment mechanism and a 3 X varifocal lens which facilitatead justment of camera orientation and view angle at the time of installation. The use of an optional heater unit allows the C-CV854R-3 to be used at ambient temperatures as low as -30℃ (-22゜F).
| Power Source | For camera: 24 V AC, 50/60 Hz or 12 V DC For heater: 24 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 4 W (300 mA, maximum current: 800 mA) |
| Image Device | 1/3 type IT-CCD |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| Monitor Output | VBS 1.0 V(p-p), 75 Ω, RCA pin jack |
| Video Output | VBS 1.0 V(p-p), 75 Ω, BNC-R jack |
| Synchronizing System | Internal synchronization |
| Resolution (at center) | Horizontal: 540 lines (standard) , Vertical: 350 lines |
| S/N Ratio | 50 dB |
| Minimum Illumination | 0.5 lx (50 IRE, color, high-sensitivity switch OFF), 0.2 lx (20 IRE, color, high-sensitivity switch OFF), 0 lx (night mode) ※Flickerless: OFF |
| Threshold Illumination for Mode Switching | Color-to-B/W mode: Approx. 2 lx B/W-to-color mode: Approx. 10 lx (incandescent lamp) |
| White Balance Mode | ATW/AWB (switch selector) |
| Focal Length | f = 3.0 - 9.0 mm |
| Maximum Aperture Ratio | 1:1.4 - 2.4 |
| Iris | Auto-iris |
| Angle of View | Horizontal: 90.3゜ - 31.9゜ Vertical: 66.4゜ - 23.9゜ Diagonal: 115.4゜ - 39.8゜ |
| Infrared LED's Illumination Range | Indoors: Approx. 18 m (59.06 ft) (high-sensitivity switch OFF), Outdoors: Approx. 15 m (49.21 ft) (high-sensitivity switch OFF), |
| Function | Back light compensation, Flickerless function, Iris control, Max. 8 × sensitivity increase (auto/off), Noise reduction (24-hour), Day/night mode (auto selector), Adjustment Switch: ON/OFF (used for focus adjustment) |
| Water/Dust Protection | IP66 |
| Operating Temperature | -10℃ to +50℃ (14゜F to 122゜F) (When an optional heater unit is attached: -30℃ to +50℃ (-22゜F to +122゜F)) |
| Operating Humidity | 90% RH or less (no condensation) |
| Applications | Outdoor/Indoor use |
| Finish | Case, bezel: Die-cast aluminum, light gray, paint Dome cover: PC resin (transparent) |
| Dimensions | φ154.2 × 110 (H) mm (φ6.07" × 4.33") (excluding the cable) |
| Weight | 1.2 kg (2.65 lb) |
| Accessory | L-type wrench …1, Base gasket …1 |
| Option | Heater unit: C-A854H Flush ceiling mounting bracket: C-BC850U Wall mounting bracket: C-BC850W Pole mounting bracket: C-BC450PM Pole band: YS-60B |
- Note: No camera mounting screws are supplied. For mounting, use screws of 4 × 25 mm (0.16" × 0.98") or longer.
