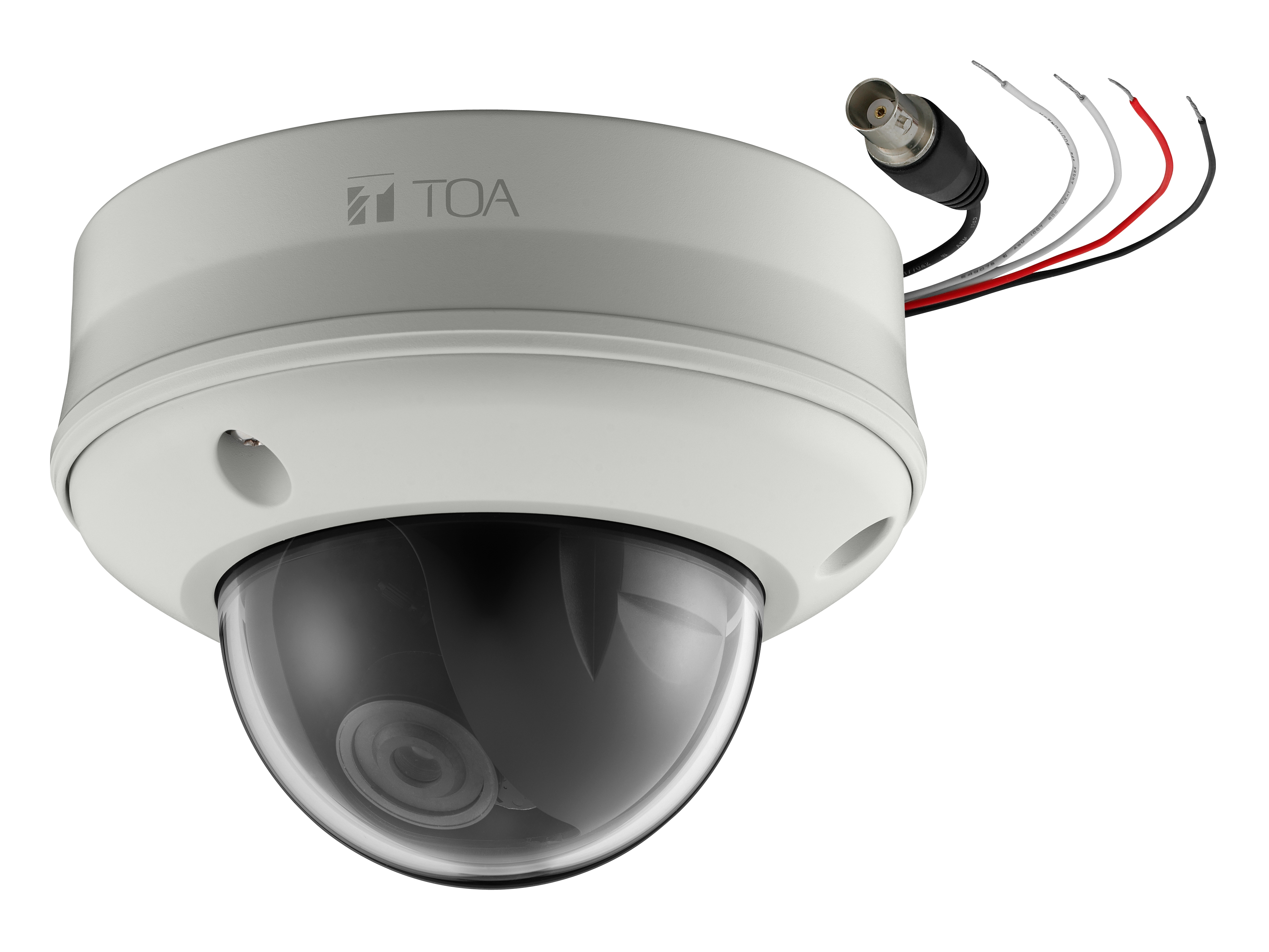

C-CV854D-9CU Vandal Resistant Day/Night Camera
C-CV854D-9 CU
The C-CV854D-9 is an outdoor-use, high resolution camera equipped with a Day/Night function. It functions as a color camera in the daytime and as a high-sensitivity monochrome camera in darkness, making it ideal for installation in locations that require around-the-clock monitoring. Noise reduction function enables clear image to be viewed in lower noise under poor lighting conditions. Its dust-proof and waterproof (IP66) construction permits it to be mounted to an outdoor wall orceiling without using a special device to protect the camera against dust or rain. Since the camera unit is constructed of die-cast aluminum alloy and its dome-cover is made of polycarbonate, the C-CV854D-9 ensures high resistance to an impact energy of 50 Joules. It features a 3-axis (horizontal, vertical and rotation) adjustment mechanism and a 2X varifocal lens which facilitate adjustment of camera orientation and view angle at the time of installation. The use of an optional built-in heater unit allows the camera to be used at ambient temperatures as low as -30℃ (-22゜F).
| Power Source | For camera: 24 V AC, 50/60 Hz or 12 V DC, For heater: 24 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 4 W (300 mA, maximum current: 800 mA) |
| Image Device | 1/3 type IT-CCD |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Monitor Output | VBS 1.0 V(p-p), 75 Ω, RCA pin jack |
| Video Output | VBS 1.0 V(p-p), 75 Ω, BNC-R jack |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| Synchronizing System | Internal synchronization |
| Resolution (at center) | Horizontal: 480 lines, Vertical: 350 lines |
| S/N Ratio | 50 dB |
| Minimum Illumination | 0.5 lx (50 IRE, color operation), 0.1 lx (20 IRE, color operation) 0.05 lx (50 IRE, black-and-white operation, incandescent lamp) ※Flickerless: OFF |
| Threshold illumination for mode switching | Color-to-B/W mode: Approx. 5 lx, B/W-to-color mode: Approx. 25 lx (incandescent lamp) |
| White Balance Mode | ATW/AWB (switch selector) |
| Focal Length | f = 9.0 - 22.0 mm |
| Maximum Aperture Ratio | 1:1.5 - 2.9 |
| Iris | Auto-iris |
| Angle of View | Horizontal: 30.6゜ - 13.0゜, Vertical: 22.6゜ - 9.8゜ |
| Function | Backlight compensation, Frickerless function, Iris control, Noise reduction (24-hour), Max. 4 × sensitivity increase (auto), Day/Night mode: Automatic/Off (swich selector), Adjustment Switch: ON/OFF (used for focus adjustment) |
| Water/Dust Protection | IP66 |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (When an optional heater unit is attached: -30 ℃ to +50 ℃ (-22 ゜F to 122 ゜F)) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Applications | Outdoor/Indoor use |
| Finish | Case, bezel: Die-cast aluminum, light gray, paint, Dome cover: PC resin (transparent) |
| Dimensions | φ154.2 × 110 (H) mm (φ6.07" × 4.33") (excluding the cables) |
| Weight | 1.1 kg (2.43 lb) |
| Accessory | L-type wrench …1, Base gasket …1 |
| Option | Heater unit: C-A854H, Fluch ceiling mounting bracket: C-BC850U, Wall mounting bracket: C-BC850W, Pole mounting bracket: C-BC450PM, Pole band: YS-60B |
