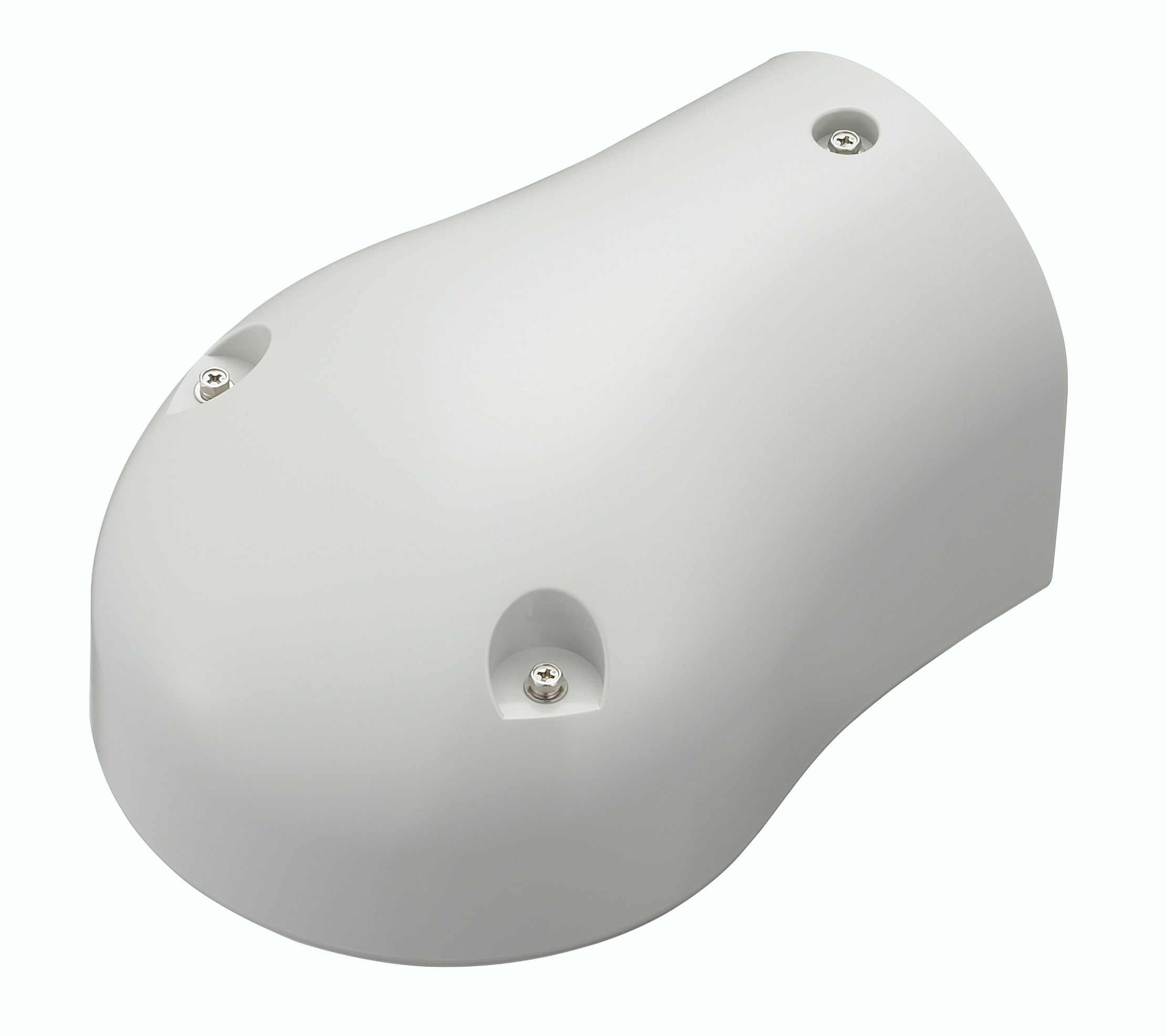

C-BC850W Wall Mount Bracket

C-BC850W

C-BC850W

The C-BC850W Wall Mounting Bracket is designed to mount the applicable dome camera to a wall. It also permits the camera to be mounted on a pole in conjunction with the optional C-BC450PM Pole Mounting Bracket and YS-60B Pole Band (option).

Specification
Finish Cover: PC resin, light gray
Bracket: Stainless steel
Dimensions 170 (W) × 115 (H) × 220 (D) mm (6.69" × 4.53" × 8.66")
Weight 1.1 kg (2.43 lb)
Accessory Joint base …1, Base mounting screw (M4×16, with washer) …4,
Camera mounting screw (M4 × 12) …4
Option Pole mounting bracket: C-BC450PM
Pole band: YS-60B
