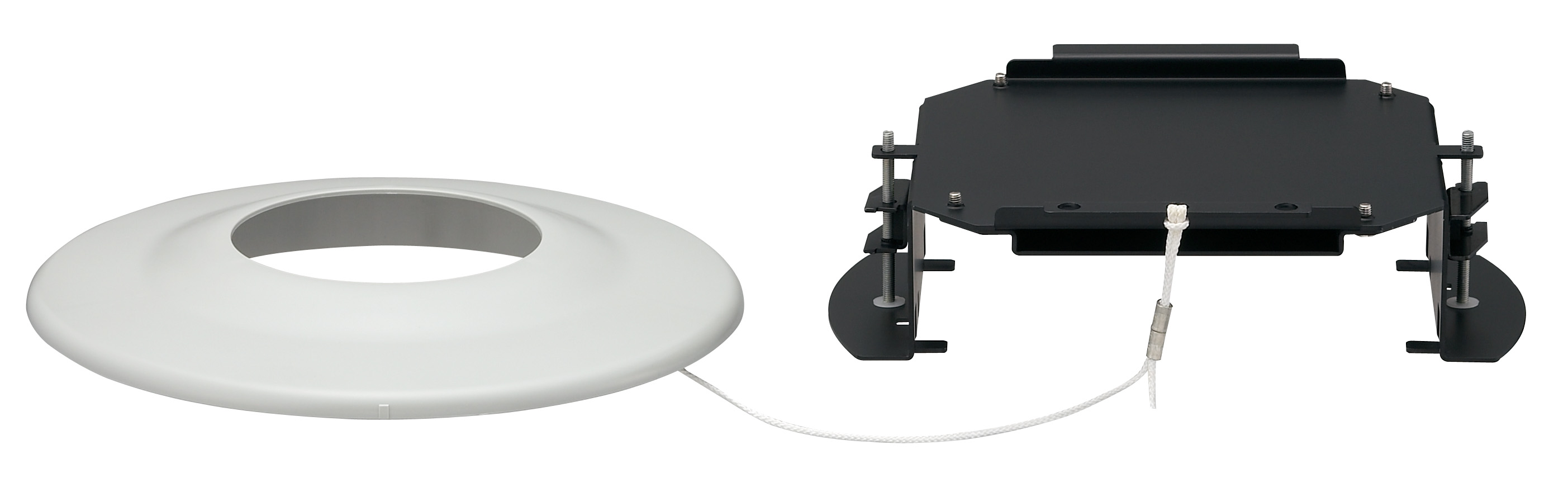

C-BC850U Flush Mount Bracket

C-BC850U

C-BC850U

The C-BC850U Flush Ceiling Mounting Bracket is designed to mount the applicable dome camera in a ceiling, with only the camera's dome cover exposed. It permits the installation of camera to a double-layer ceiling with gypsum board that is not tough enough for mounting screws to be securely inserted in.

Specification
Board Thickness for Mounting 25 mm (0.98") or less
Finish Decorative panel: PC resin, light gray
Mounting bracket: Rolled steel plate, black, paint
Mounting Hole Diameter φ200 mm (φ7.87")
Dimensions φ227 × 80.6 (H) mm (8.94" × 3.17")
Weight 930 g (2.05 lb)
Accessory Camera mounting screw (M4 × 10) …4, Decorative panel …1
