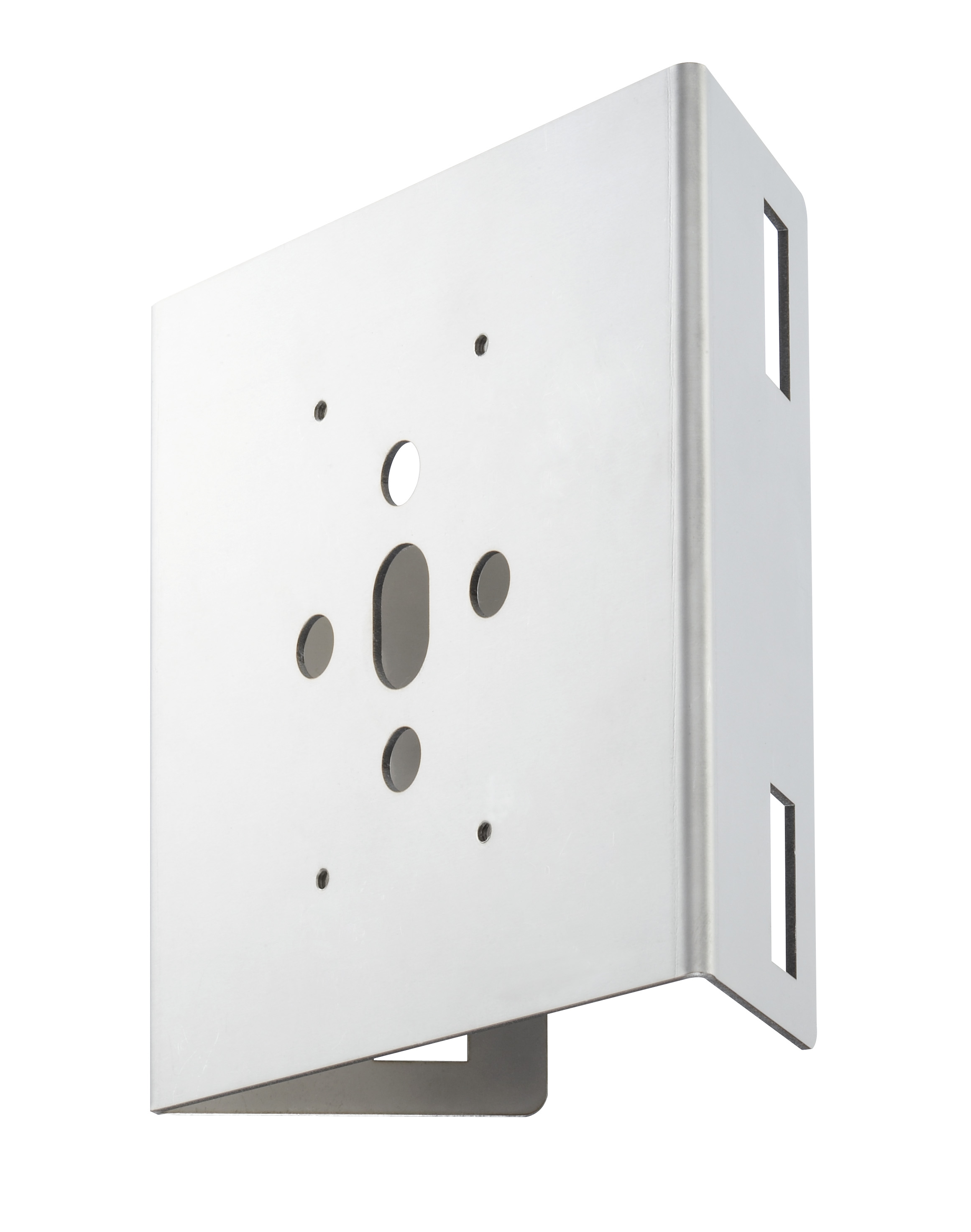

C-BC450PM Pole Mount Bracket

C-BC450PM

C-BC450PM

The C-BC450PM Pole Mounting Bracket is designed to mount the applicable camera on a pole in conjunction with the optional YS-60B Pole Band. It also permits the applicable dome camera to be mounted on a pole in conjunction with the optional YS-60B Pole Band and the C-BC850W Wall Mounting Bracket.

Specification
Applicable Pole Diameter φ90 - φ340 mm (φ3.54" - φ13.4")
Finish Stainless steel
Dimensions 156 (W) × 150 (H) × 62 (D) mm (6.14" × 5.91" × 2.44")
Weight 660 g (1.46 lb)
Option Pole band: YS-60B
Wall mounting bracket: C-BC850W
Note: It is recommended that the pole mounting bracket and mounting band be reinforced separately for added safety when installing the camera in locations exposed to vibration or strong wind. It is also recommended that the installed unit, mounting bracket, and mounting band be checked periodically for any abnormalities such as loose joint or slackness.
