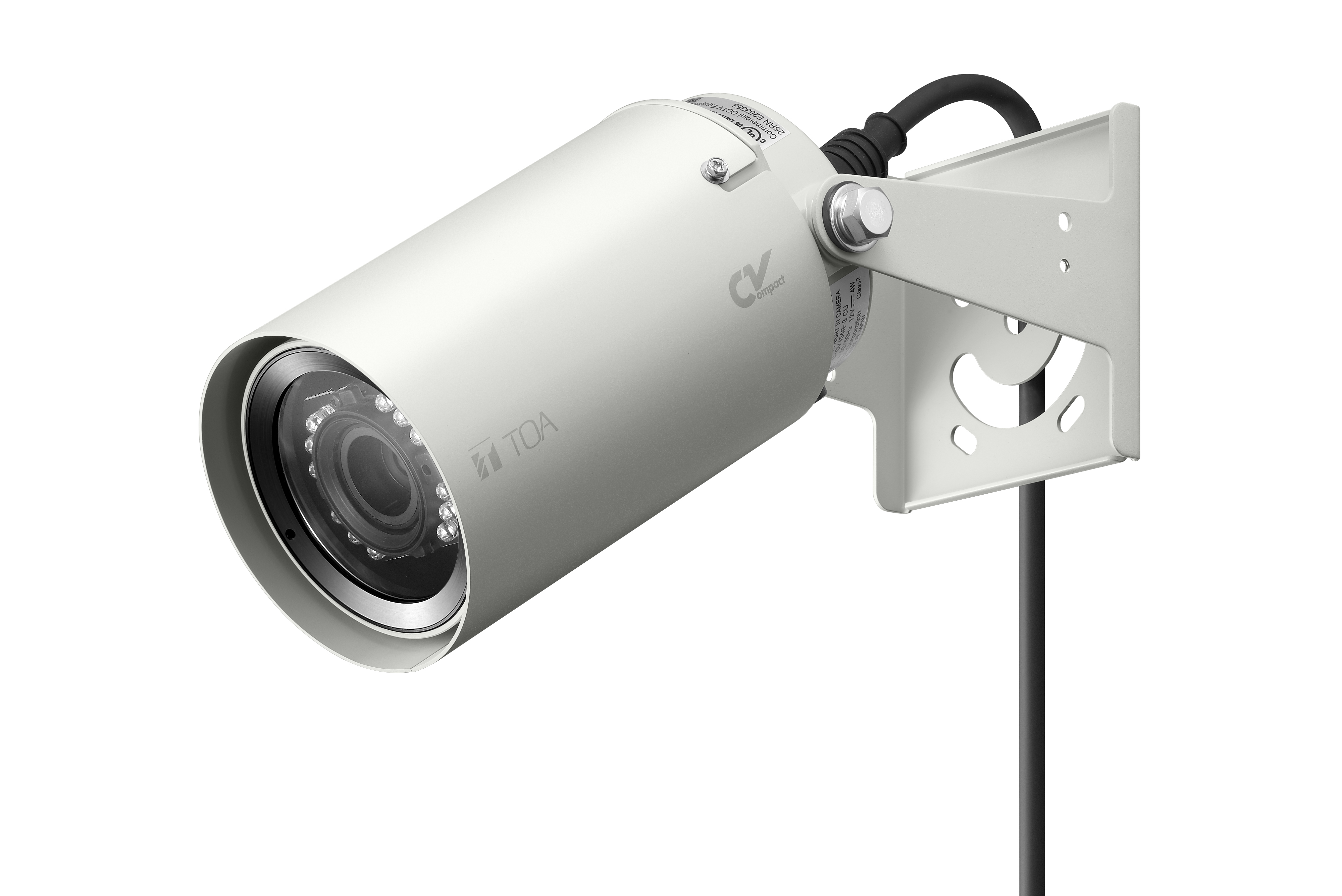

C-CV454R-3 Outdoor Day/Night IR Camera
C-CV454R-3 CU
The C-CV454R-3 is an Outdoor-Use Day/Night IR Camera equipped with a 1/3 type CCD. Owing to a built-in auto iris varifocal lens, the angle of view can also be manually adjusted. It functions as a color camera (day mode) in bright locations and as a high-sensitivity black & white camera (night mode) in dark locations. Since the camera's built-in infrared LED illuminator lights in night mode, video surveillance is possible even in no light conditions, allowing the camera to be used for around-the-clock surveillance. Noise reduction function enables low noise, clear images to be viewed even under poor lighting conditions. Its dust-proof and waterproof (IP66) construction permits it to be mounted to an outdoor wall or ceiling without using a special device. Angle of the camera unit can be adjusted freely regardless of installation location, allowing a wider area to be viewed.
| Power Source | 24 V AC, 50/60 Hz or 12 V DC |
|---|---|
| Power Consumption | 4 W (300 mA, maximum current: 800 mA) |
| Image Device | 1/3 type IT-CCD |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| Monitor Output | VBS 1.0 V(p-p), 75 Ω, RCA pin jack |
| Video Output | VBS 1.0 V(p-p), 75 Ω, Water-resistant connector |
| Synchronizing System | Internal synchronization |
| Resolution (at center) | Horizontal: 540 lines (standard) , Vertical: 350 lines |
| S/N Ratio | 50 dB |
| Minimum Illumination | 0.5 lx (50 IRE, color, high-sensitivity switch OFF), 0.2 lx (20 IRE, color, high-sensitivity switch OFF), 0 lx (night mode) ※Flickerless: OFF |
| Threshold Illumination for Mode Switching | Color-to-B/W mode: Approx. 2 lx B/W-to-color mode: Approx. 10 lx (incandescent lamp) |
| White Balance Mode | ATW/AWB (switch selector) |
| Focal Length | f = 3.0 mm - 9.0 mm |
| Maximum Aperture Ratio | 1:1.4 - 2.4 |
| Iris | Auto-iris |
| Angle of View | Horizontal: 90.3゜ - 31.9゜ Vertical: 66.4゜ - 23.9゜ Diagonal: 115.4゜ - 39.8゜ |
| Infrared LED's Illumination Range | Indoors: Approx. 18 m (59.06 ft) (high-sensitivity switch OFF), Outdoors: Approx. 15 m (49.21 ft) (high-sensitivity switch OFF), |
| Function | Back light compensation, Flickerless function, Iris control, Max. 8 × sensitivity increase (auto/off), Noise reduction (24-hour), Day/night mode (auto selector), Adjustment Switch: ON/OFF (used for focus adjustment) |
| Water/Dust Protection | IP66 |
| Operating Temperature | -10℃ to +50℃ (14゜F to 122゜F) |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Front cover, rear cover, sunshade: Aluminum, light gray, paint Mounting bracket: Stainless steel, light gray, paint |
| Dimensions | φ92 × 230 (D) mm (φ3.62" × 9.06") (excluding the mounting bracket) |
| Weight | 1.2 kg (2.65 lb) |
| Accessory | Mounting bracket …1, Insulating spacer …2, Bracket mounting bolt (with washer, stainless steel) …2, Cable with waterproof cap (2 m (6.56 ft)) …1 |
| Option | Pole mounting bracket: C-BC450PM Pole band: YS-60B |
