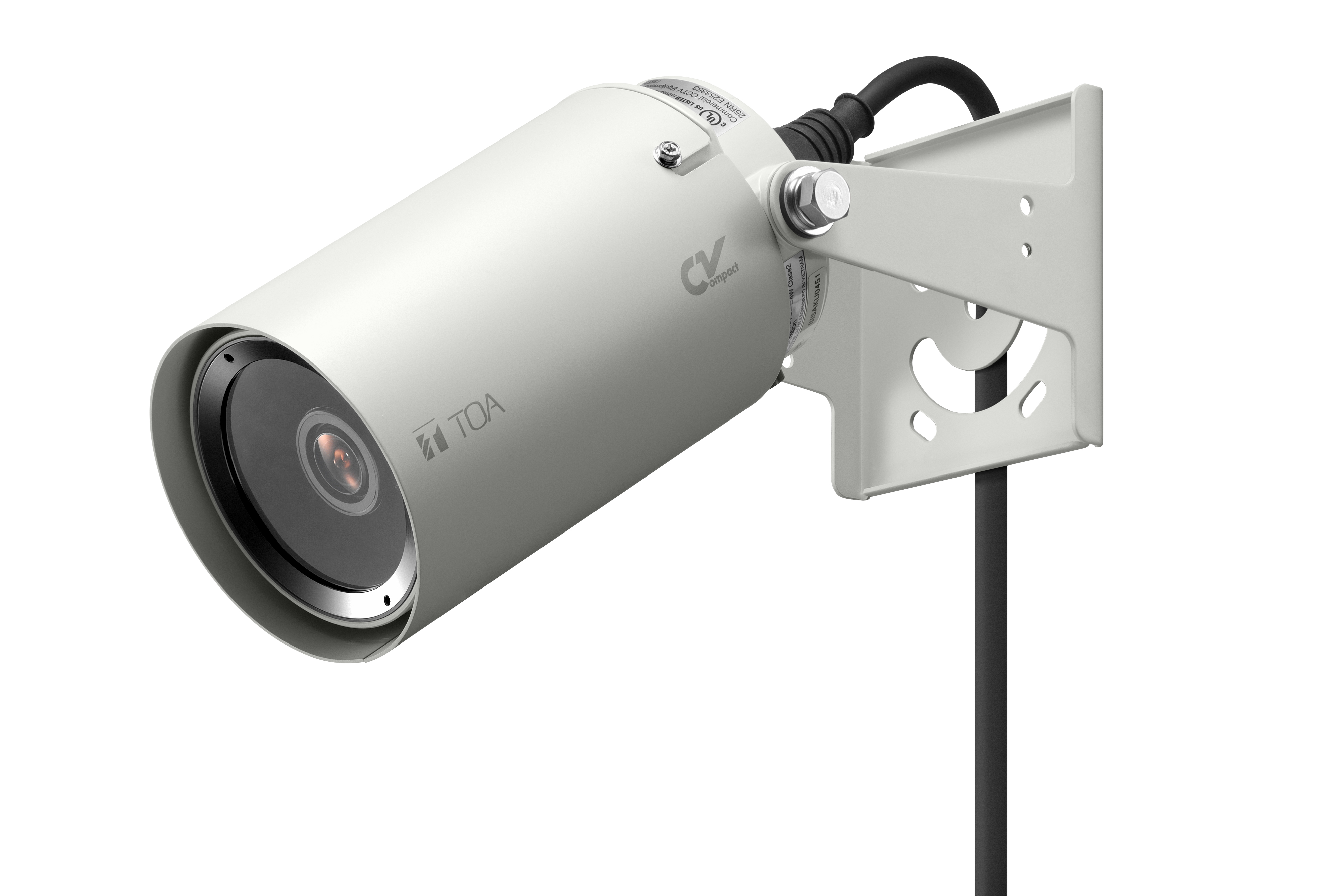

C-CV454D-9 Outdoor Day/Night Camera
C-CV454D-9 CU
The C-CV454D-9 is a high-sensitivity color camera that can be operated on 24 V AC or 12 V DC. Its waterproof construction permits it to be mounted to an outdoor wall or ceiling without using a special device. Angle of the camera unit can be adjusted freely regardless of installation location, allowing a wider area to be viewed. Owing to a built-in autoiris varifocal lens, the angle of view can also be manually adjusted. Noise reduction function enables low noise, clear images to be viewed even under poor lighting conditions. The C-CV454D-9 functions as a color camera in the daytime and as a high-sensitivity monochrome camera in darkness, making it ideal for installation in locations that require around-the-clock monitoring.
| Power Source | 24 V AC, 50/60 Hz or 12 V DC |
|---|---|
| Power Consumption | 4 W (300 mA, maximum current: 800 mA) |
| Image Device | 1/3 type IT-CCD |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| Monitor Output | VBS 1.0 V(p-p), 75 Ω, RCA pin jack |
| Video Output | VBS 1.0 V(p-p), 75 Ω, Water-resistant connector |
| Synchronizing System | Internal synchronization |
| Resolution (at center) | Horizontal: 480 lines or more, Vertical: 350 lines |
| S/N Ratio | 50 dB |
| Minimum Illumination | 0.5 lx (50 IRE, color operation), 0.1 lx (20 IRE, color operation) 0.05 lx (50 IRE, black-and-white operation, incandescent lamp) ※Flickerless: OFF |
| Threshold illumination for mode switching | Color-to-B/W mode: Approx. 5 lx, B/W-to-color mode: Approx. 25 lx (incandescent lamp) |
| White Balance Mode | ATW/AWB (switch selector) |
| Focal Length | f = 9.0 - 22.0 mm |
| Maximum Aperture Ratio | 1:1.5 - 2.9 |
| Iris | Auto-iris |
| Angle of View | Horizontal: 30.6゜ - 13.0゜, Vertical: 22.6゜ - 9.8゜ |
| Function | Backlight compensation, Frickerless function, Iris control, Noise reduction (24-hour), Max. 4 × sensitivity increase (auto), Day/Night mode: Automatic/Off (swich selector), Adjustment Switch: ON/OFF (used for focus adjustment) |
| Water/Dust Protection | IP66 |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Front cover, rear cover, sunshade: Aluminum, light gray, paint Mounting bracket: Stainless steel, light gray, paint |
| Dimensions | φ92 × 230 (D) mm (φ3.62" × 9.06") (excluding the mounting bracket) |
| Weight | 1.2 kg (2.65 lb) |
| Accessory | Mounting bracket …1, Bracket mounting bolt (with washer, stainless steel) …2, Insulating spacer …2, Cable with waterproof cap (2 m (6.56 ft)) …1 |
| Option | Pole mounting bracket: C-BC450PM, Pole band: YS-60B |
