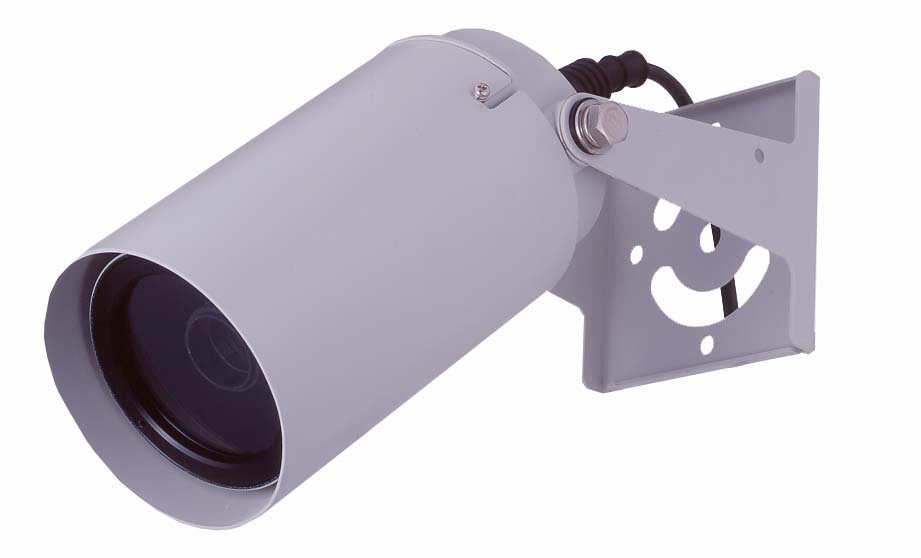

C-CV44-3 Outdoor Color Camera
C-CV44-3 NTSC
The C-CV44-3 is a 24 V AC or 12 V DC-operated, high-resolution color camera. The camera features waterproof design that permits the camera to be mounted to outdoor walls or ceilings. Camera angles can be freely changed, allowing wide-area coverage at any installation location. A built-in 2X auto-iris varifocal lens permits free manual adjustment of angles of view.
| Power Source | 24 V AC, 50/60 Hz or 12 V DC |
|---|---|
| Power Consumption | 2 W (maximum current: 800 mA) |
| Image Device | 1/4 type IT-CCD |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| Monitor Output | VBS 1.0 V(p-p), 75 Ω, RCA pin jack |
| Video Output | VBS 1.0 V(p-p), 75 Ω, waterproof connector |
| Synchronizing System | Internal synchronization |
| Resolution (at center) | Horizontal: 480 lines, Vertical: 350 lines |
| S/N Ratio | 48 dB |
| Minimum Illumination | 3 lx (50 IRE) |
| White Balance Mode | ATW |
| Focal Length | f = 3.0 - 6.0 mm |
| Maximum Aperture Ratio | 1:1.2 - 1.5 |
| Iris | Auto-iris |
| Angle of View | Horizontal: 71.9゜ - 36゜, Vertical: 52゜ - 26.8゜ |
| Function | Backlight compensation, Flickerless function, Iris control, Adjustment switch: ON/OFF (used for focus adjustment) |
| Water/Dust Protection | IP66 |
| Operating Temperature | -10 ℃ to +50 ℃ |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Front cover, rear cover, sunshade: Aluminum, light gray, paint Mounting bracket: Stainless steel, light gray, paint |
| Dimensions | φ92 × 236 (D) mm (excluding mounting bracket) |
| Weight | 1.1 kg |
| Accessory | Mounting bracket …1, Cord with waterproof cap (2 m)…1, Bracket mounting bolt (with washer), Insulating spacer …2 |
| Option | Pole mounting bracket: C-BC450PM, Pole band: YS-60B |
