C-CV24-3 Color Dome Camera
C-CV24-3 CU

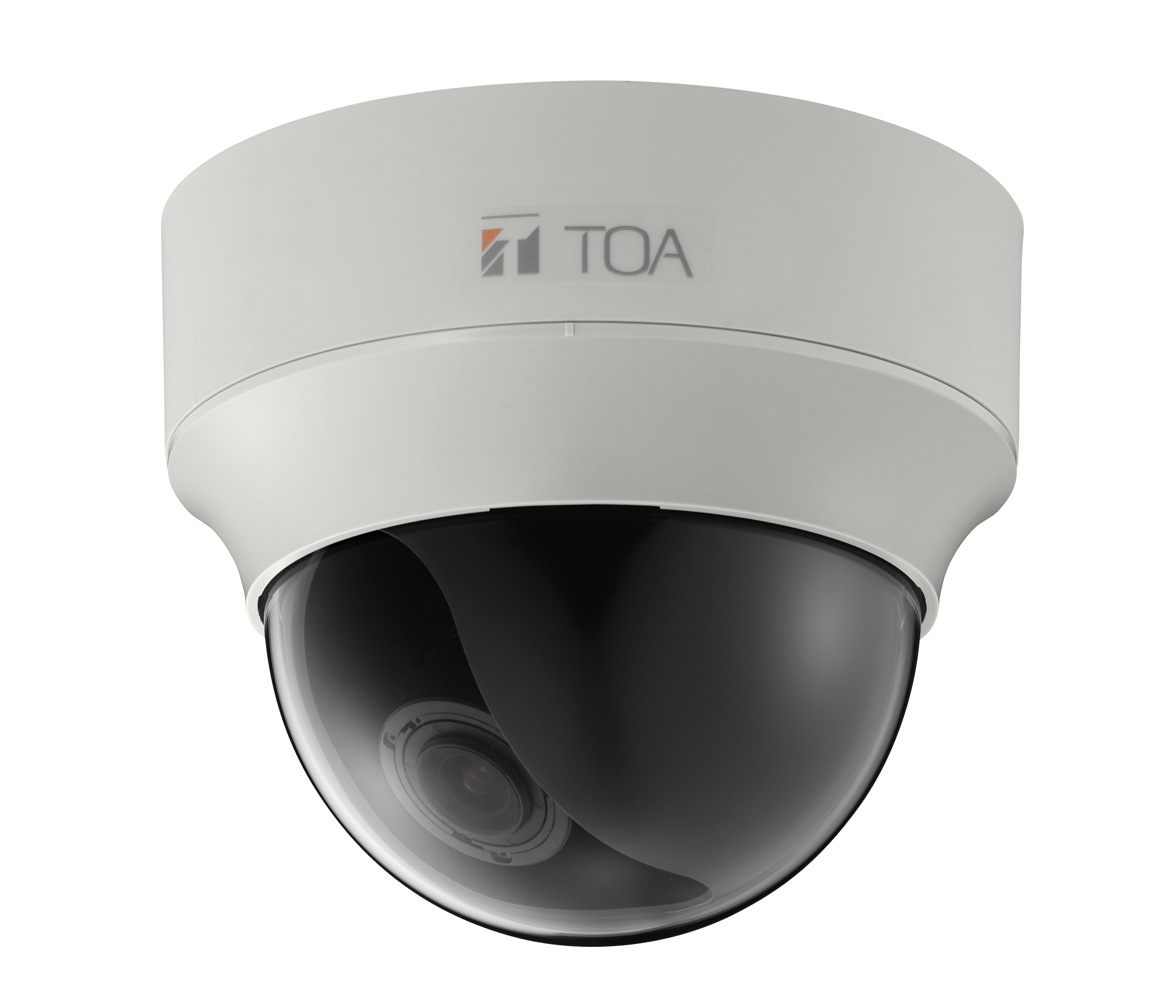

The C-CV24-3 is a 24 V AC or 12 V DC-operated, high-resolution color camera. A built-in 4X auto-iris varifocal lens permits free manual adjustment of angles of view.
| Power Source | 24 V AC, 50/60 Hz or 12 V DC |
|---|---|
| Power Consumption | 2 W (maximum current: 800 mA) |
| Image Device | 1/4 type IT-CCD |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| Monitor Output | VBS 1.0 V(p-p), 75 Ω, RCA pin jack |
| Video Output | VBS 1.0 V(p-p), 75 Ω, BNC-R jack |
| Synchronizing System | Internal synchronization |
| Resolution (at center) | Horizontal: 480 lines, Vertical: 350 lines |
| S/N Ratio | 48 dB |
| Minimum Illumination | 3 lx (50 IRE) |
| White Balance Mode | ATW |
| Focal Length | f = 3.3 mm - 12.0 mm |
| Maximum Aperture Ratio | 1:1.4 - 2.9 |
| Iris | Auto-iris |
| Angle of View | Horizontal: 63.6゜ - 17.9゜, Vertical: 46.5゜ - 13.5゜ |
| Control Switch | ON/OFF (used for focus adjustment) |
| Other Function | Backlight compensation, Shutter speed (1/60, 1/100), Iris control |
| Operating Temperature | -10℃ to +50℃ (14゜F to 122゜F) |
| Operating Humidity | 90%RH or less (no condensation) |
| Applications | Indoor use |
| Finish | Case: ABS resin, light gray Dome cover: Acrylic resin |
| Dimensions | φ118 × 97 (H) mm (φ4.65" × 3.82") |
| Weight | 370 g (0.82 lb) |
| Option | Flush ceiling mounting bracket: C-BC20U |
- Note: No camera mounting screws are supplied. For mounting, use screws of 4 × 25 mm (0.16" × 0.98") or longer.
