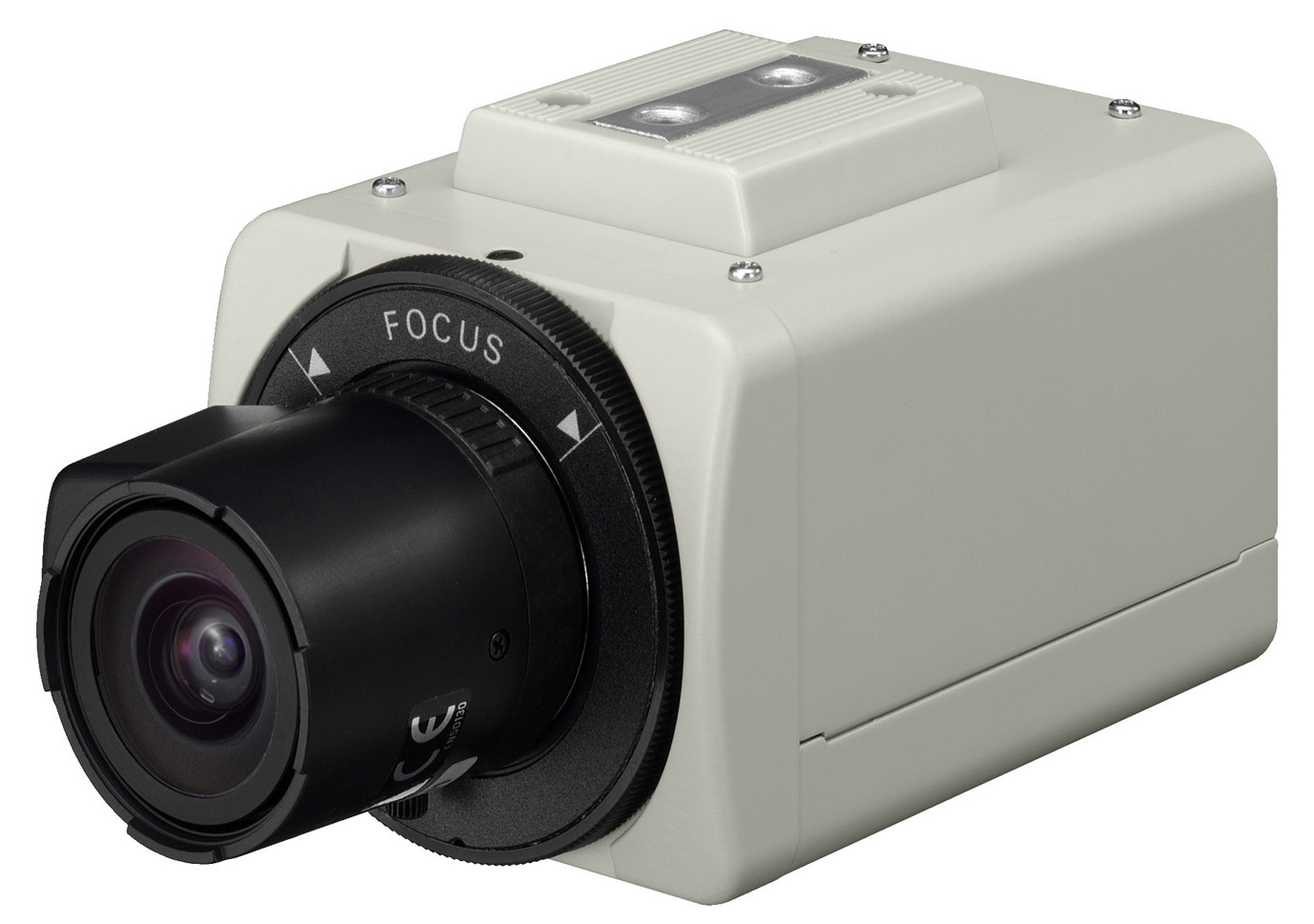

C-CV14-CS Color Camera
C-CV14-CS PAL
The C-CV14-CS is a 24 V AC or 12 V DC-operated, high-resolution color camera.
| Power Source | 24 V AC, 50/60 Hz or 12 V DC |
|---|---|
| Power Consumption | 2 W (maximum current: 800 mA) |
| Image Device | 1/4 type IT-CCD |
| Number of Effective Pixels | 752 (H) × 582 (V) (440,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.625 kHz, Vertical: 50 Hz |
| Video Output | VBS 1.0 V(p-p), 75 Ω, BNC connector |
| Synchronizing System | Internal synchronization |
| Resolution | Horizontal: 470 lines, Vertical: 410 lines |
| S/N Ratio | 48 dB |
| Minimum Illumination | 3 lx (F1.4, 350 mV) |
| White Balance Mode | ATW |
| Lens Mount | CS mount |
| Auto-Iris Lens Output | DC input type (4 pin connector) |
| Control Switch | ON/OFF (used for focus adjustment) |
| Other Function | Backlight compensation, Shutter speed (1/50, 1/120), Iris control |
| Operating Temperature | -10℃ to +50℃ |
| Operating Humidity | Under 90%RH (no condensation) |
| Applications | Indoor use |
| Finish | Case: Surface-treated steel plate, light gray, paint Front cover: Aluminum, light gray, paint |
| Dimensions | 63.4 (W) × 62.7 (H) × 102.5 (D) mm |
| Weight | 300 g |
| Option | Camera mounting bracket |
