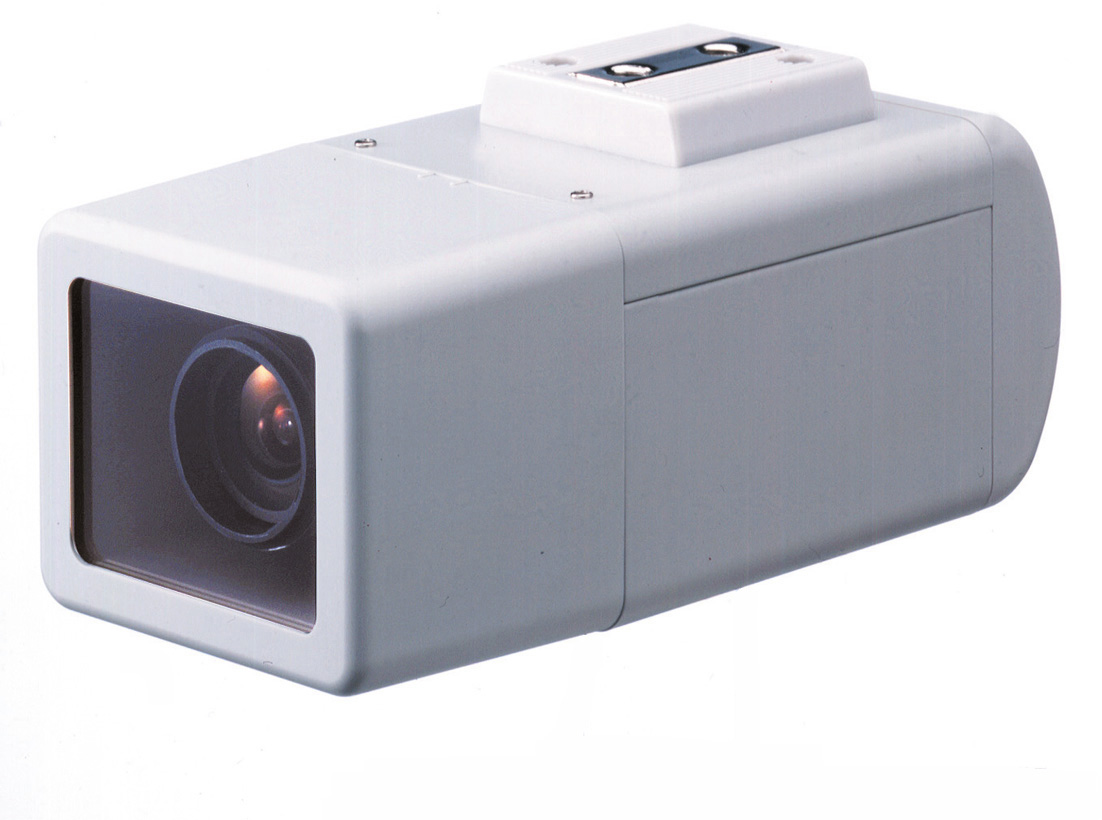

C-CV14-2 Color Camera
C-CV14-2 NTSC
The C-CV14-2 is a 24 V AC or 12 V DC-operated, high-resolution color camera. A built-in 2X auto-iris varifocal lens permits free manual adjustment of angles of view.
| Power Source | 24 V AC, 50/60 Hz or 12 V DC |
|---|---|
| Power Consumption | 2 W (maximum current: 800 mA) |
| Image Device | 1/4 type IT-CCD |
| Number of Effective Pixels | 768 (H) × 494 (V) (380,000 pixels) |
| Scanning System | 2:1 interlace |
| Scanning Frequency | Horizontal: 15.734 kHz, Vertical: 59.94 Hz |
| Video Output | VBS 1.0 V(p-p), 75 Ω, BNC connector |
| Synchronizing System | Internal synchronization |
| Resolution | Horizontal: 480 lines (at center), Vertical: 350 lines (at center) |
| S/N Ratio | 48 dB |
| Minimum Illumination | 3 lx (50 IRE) |
| White Balance Mode | ATW |
| Focal Length | f = 2.0 mm - 4.0 mm |
| Maximum Aperture Ratio | 1:1.4 - 1.8 |
| Iris | Auto-iris |
| Angle of View | Horizontal: 105.1゜ - 53.2゜, Vertical: 77.4゜ - 39.8゜ |
| Control Switch | ON/OFF (used for focus adjustment) |
| Other Function | Backlight compensation, Shutter speed (1/60, 1/100), Iris control |
| Operating Temperature | -10℃ to +50℃ |
| Operating Humidity | Under 90%RH (no condensation) |
| Applications | Indoor use |
| Finish | Case: Surface-treated steel plate, light gray, paint Lens cover: ABS resin, light gray |
| Dimensions | 63 (W) × 62.5 (H) × 134.3 (D) mm |
| Weight | 300 g |
| Option | Camera mounting bracket |
