VX-200SO Control Output Module

VX-200SO

VX-200SO

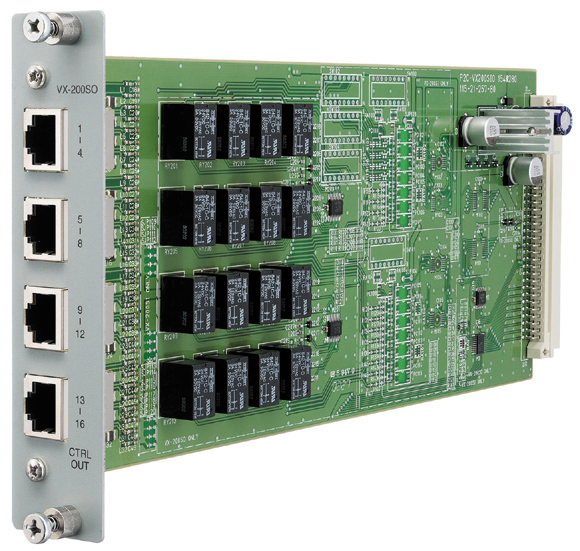

TOA's VX-200SO Control Output Module is used to increase the number of control outputs to be used in the VX-2000 system. It features 16 control outputs and is mounted in the VX-2000SF Surveillance Frame.

Specification
Power Source Supplied from VX-2000SF
Current Consumption Under 150 mA
Control Output 16 outputs, no-voltage make contact, contact capacity: 28 V DC, 1 A,
RJ45 connector
Finish Panel: Surface-treated steel plate
Dimensions 30.5 (W) × 132.6 (H) × 290.3 (D) mm
Weight 250 g
Applicable Model VX-2000SF
