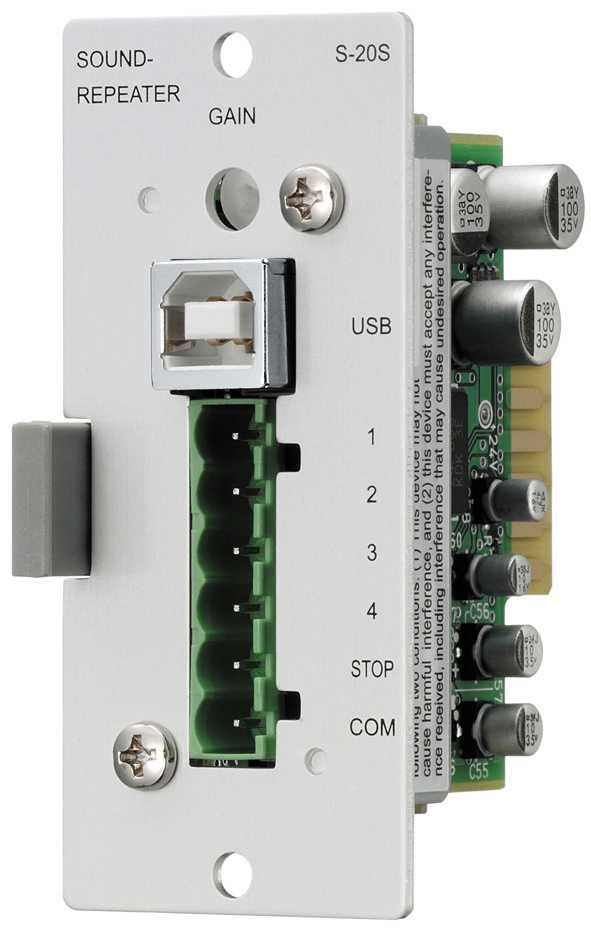

S-20S Sound Repeater
S-20S
The S-20S is EV module to be used in conjunction with the 900 series and BG-1000 series amplifier and VX-2000. Up to 4 types of music and messages (6 minutes total time) can be recorded and played back. The USB port facilitates recording by transferring the supplied sound sources from a PC to the unit.
- * 0 dB = 1 V
| Power Source | 24 V DC |
|---|---|
| Current Consumption | Under 40 mA |
| Output | 0 dB* |
| Wave Format | 44.1 kHz sampling frequency, 16-bit PCM (monaural) |
| Frequency Response | 50 - 20,000 Hz ±3 dB (1 kHz) |
| Distortion | Under 1% (1 kHz) |
| Recording System | USB data transfer |
| Control Input | Play 1-4, stop: No-voltage make contact input, pulse make length: 200 ms, open voltage: 24 V DC, short-circuit current: 2 mA removable terminal block (6 pins) |
| Maximum No. of Messages | 4 |
| Maximum Recording Time | 6 min |
| Playback Interval Time | , 0 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 30 min or 1 h (selectable) |
| Operating Temperature | 0℃ to +50℃ |
| Finish | Panel: Aluminum, hairline |
| Dimensions | 35 (W) × 78 (H) × 88 (D) mm |
| Weight | 65 g |
| Accessory | CD-ROM (USB data transfer software and sample chimes recorded) …1, USB cable (1 m) …1, Removable terminal plug (6 pins) …1, Mounting screw …2 |
| Applicable Model (option) | A-900 series, BG-1000 series, VX-2000 |
USB Data Transfer Software Operation Environment
