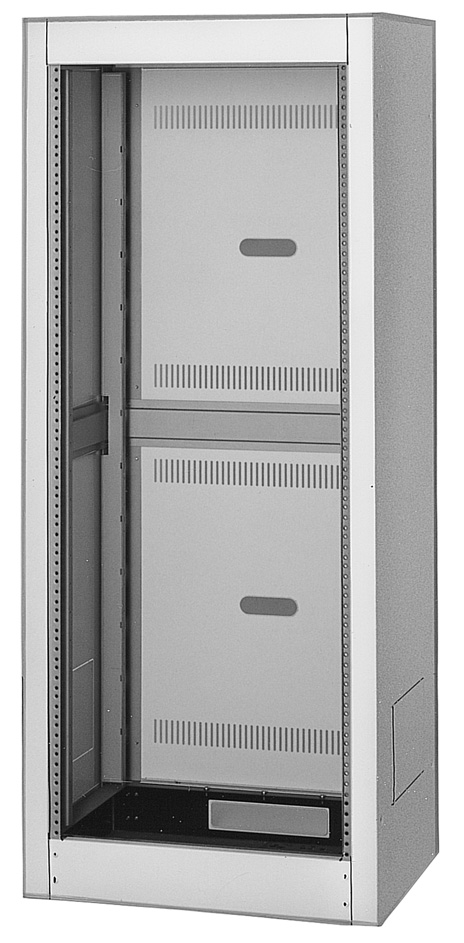

CR-273 Rack

CR-273

CR-273

The CR-273 equipment rack complies with the EIA standard and can accommodate up to 27 standard panels (44.5 mm). An M16 eyebolt can be mounted to the top plate.

Specification
Finish Chassis section: Surface treated steel plate
Top plate/flame 2 mm thick
Reinforcement 1.6 mm thick
Base: Steel plate (2 mm thick), powder coating, black
Design section: Pre-coated steel plate (1 mm thick), ivory, semi-gloss
Dimensions 566 (W) × 1364 (H) × 435 (D) mm
Weight 48 kg
Accessory Screw cover ……2, Screw cover rail ……6, Cable clip ……12, Fixing screw ……1set
Option Blower unit: BU-412, Rack runner: YA-706
