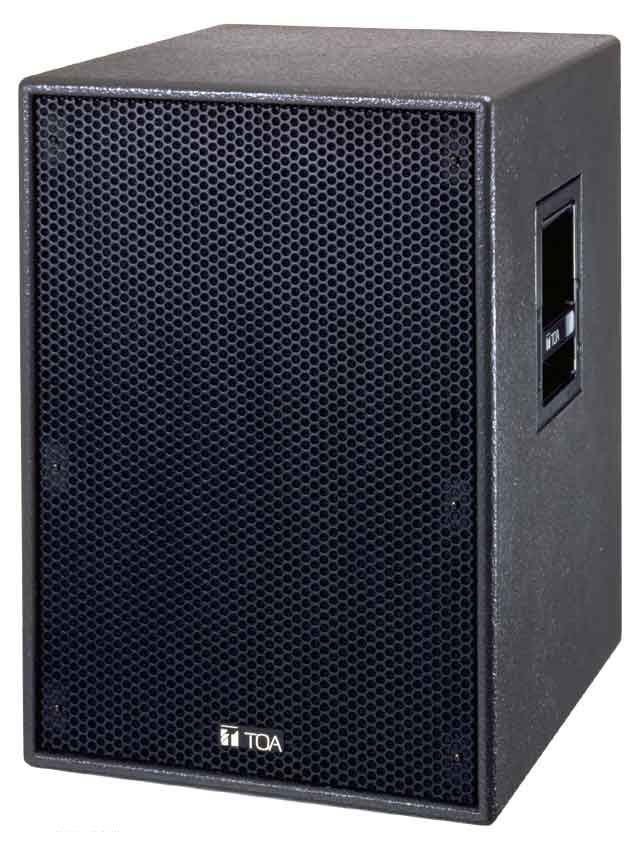

SR-L05 Speaker System

SR-L05

SR-L05

Featuring high power, high quality, and rugged construction, the SR-L05 is a sub-woofer system that can be used for on-the-road applications as well as permanent installation. The speaker system is used with the DP-0206 Digital processor.

Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 150 W
Continuous program: 450 W
Rated Impedance 8 Ω
Sensitivity 93 dB (1 W, 1 m)
Frequency Response 35 Hz- 1 kHz
Crossover Frequency 125 Hz (when DP-0206 is used)
Speaker Component Low frequency: 38 cm cone-type
Input Connector Neutrik NL4MP and M5 screw terminal, distance between barriers: 12.2 mm
Finish Enclosure: Plywood, black, paint
Front grille: Steel plate, black, acrylic paint
Dimensions 452 (W) × 629 (H) × 502 (D) mm
Weight 36 kg
