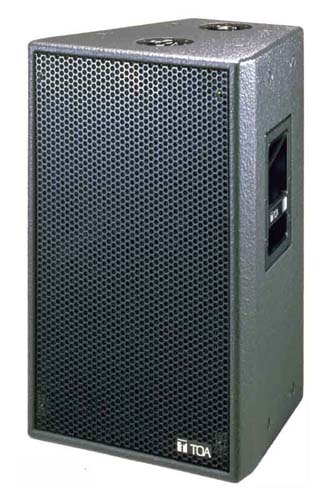

SR-F09-V3 Installed Speaker System

SR-F09-V3

SR-F09-V3

Designed for permanent installation, the SR-F09-V3 is a 2-way, speaker system featuring high power, high quality, and ability to stand up. It is driven by a single amplifier having a built-in passive network, and is used with the DP-0206 Digital processor.

Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 200 W
Continuous program: 600 W
Rated Impedance 8 Ω
Sensitivity 100 dB (1 W, 1 m)
Frequency Response 70 Hz - 20 kHz (when DP-0206 is used)
Crossover Frequency 1 kHz (passive network)
Speaker Component Low frequency: 30 cm cone-type
High frequency: CD horn (90゜ horizontal × 60゜ vertical) fitted with compression driver
Input Connector Neutrik NL4MP × 2 and M5 screw terminal, distance between barriers: 12.2 mm
Finish Enclosure: Plywood, black, paint
Front grille: Steel plate, black, acrylic paint
Dimensions 390 (W) × 619 (H) × 364 (D) mm
Weight 35 kg
