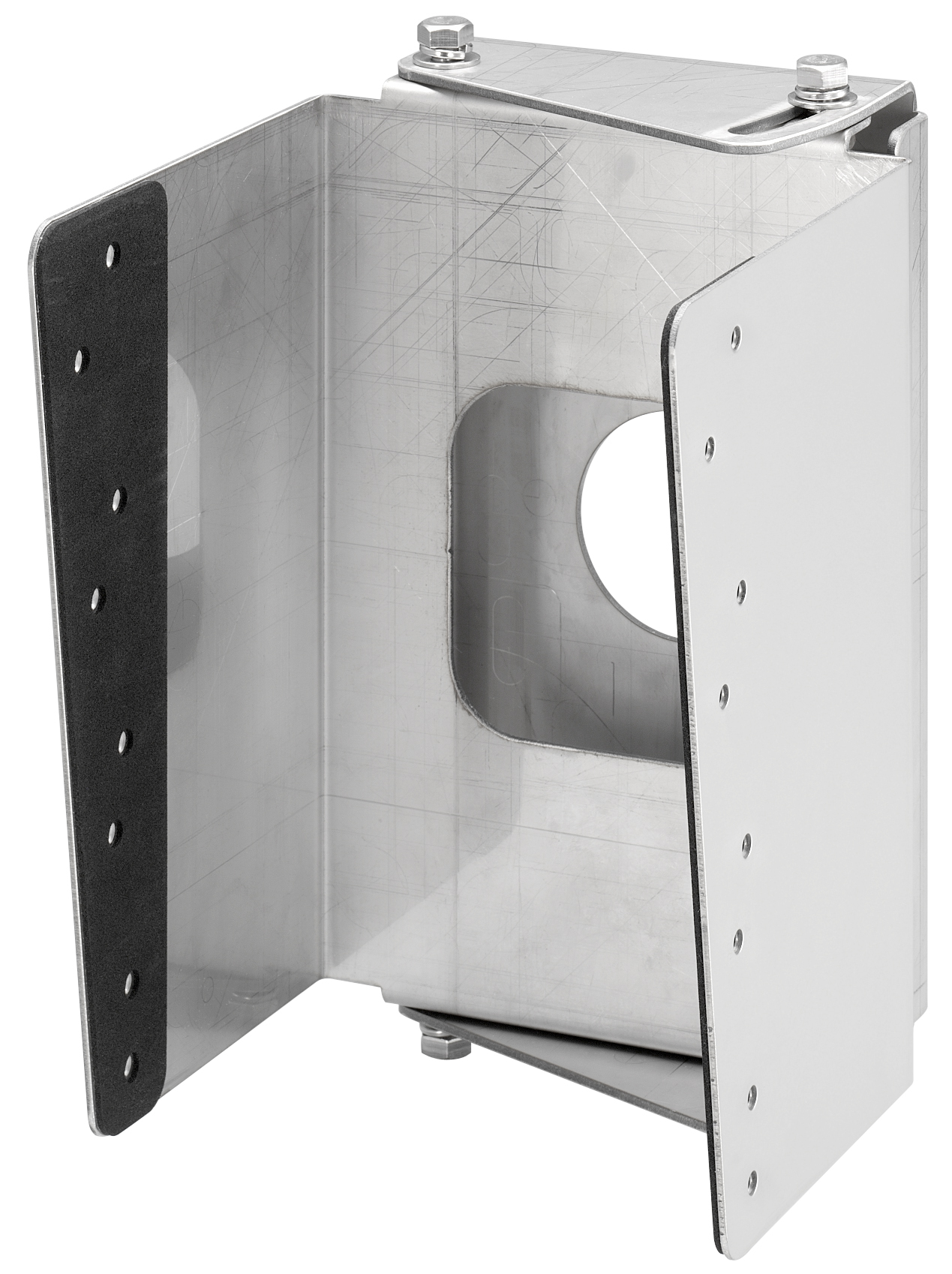

SR-TB4WP Wall Tilt Bracket

SR-TB4WP

SR-TB4WP

The SR-TB4WP is designed to be used to mount the Line Array Speaker system SR-S4LWP or SR-S4SWP on a wall. The downward angle can be set to either 0゜ or 5゜, and the horizontal angle to up to 20゜.

Specification
Number of Speakers to be Mounted 1
Finish Stainless steel
Dimensions 167 (W) × 247 (H) × 201 (D) mm (complete assembly)
Weight 2.8 kg (including accessories)
Product Composition Speaker mounting bracket …1, Bracket base …1
Accessory Bracket assembling screw (M8 upset head) …4
