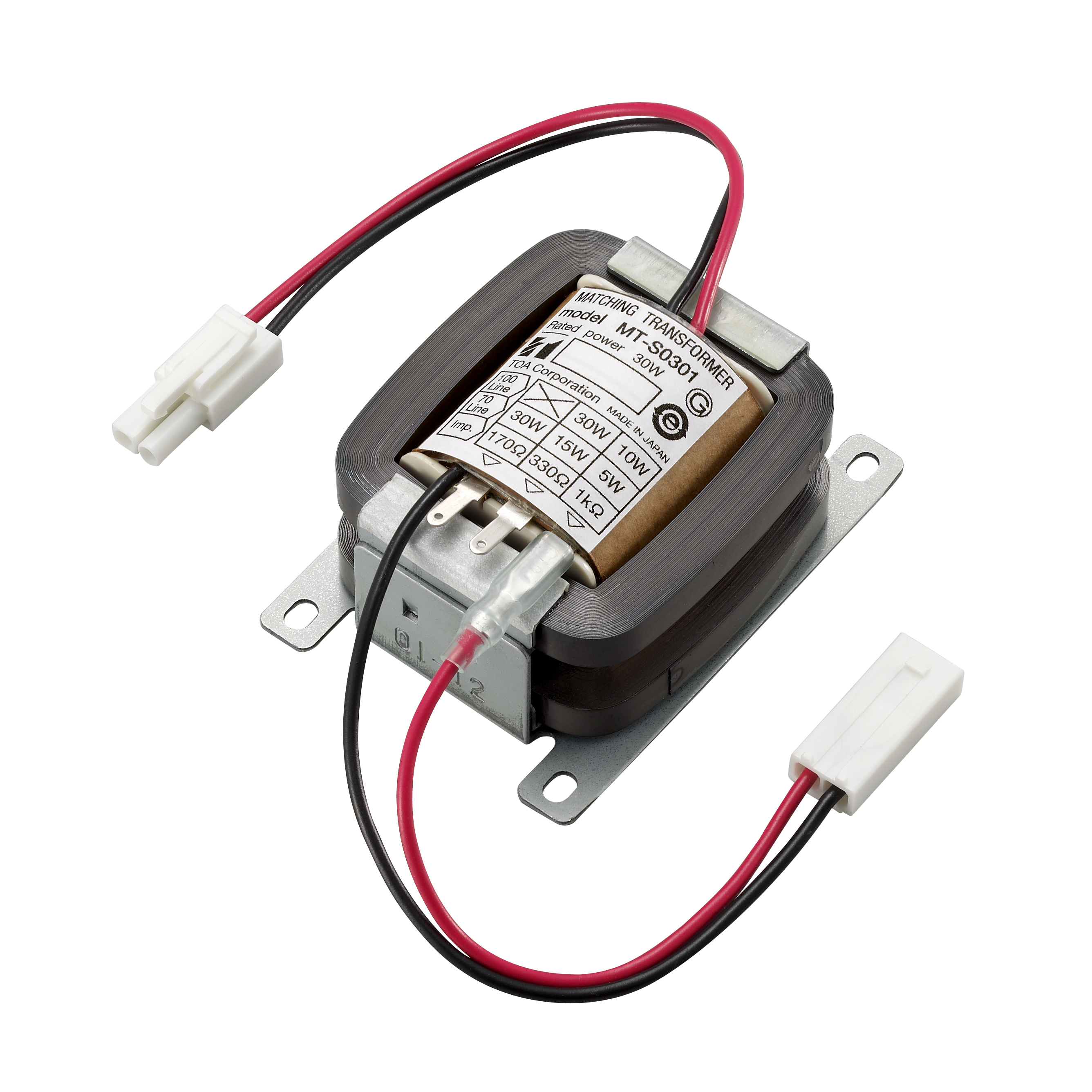

MT-S0301 Matching Transformer

MT-S0301

The MT-S0301 Matching Transformer is designed to be installed in the Line Array Speaker.

Specification
Rated Input Power 30 W
Primary Side 100 V line: 330 Ω (30 W), 1 kΩ (10 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W)
Secondary Side 8 Ω
Weight 370 g (0.82 lb)
Applicable Speaker SR-H3S, SR-H3L, SR-H2S, SR-H2L
