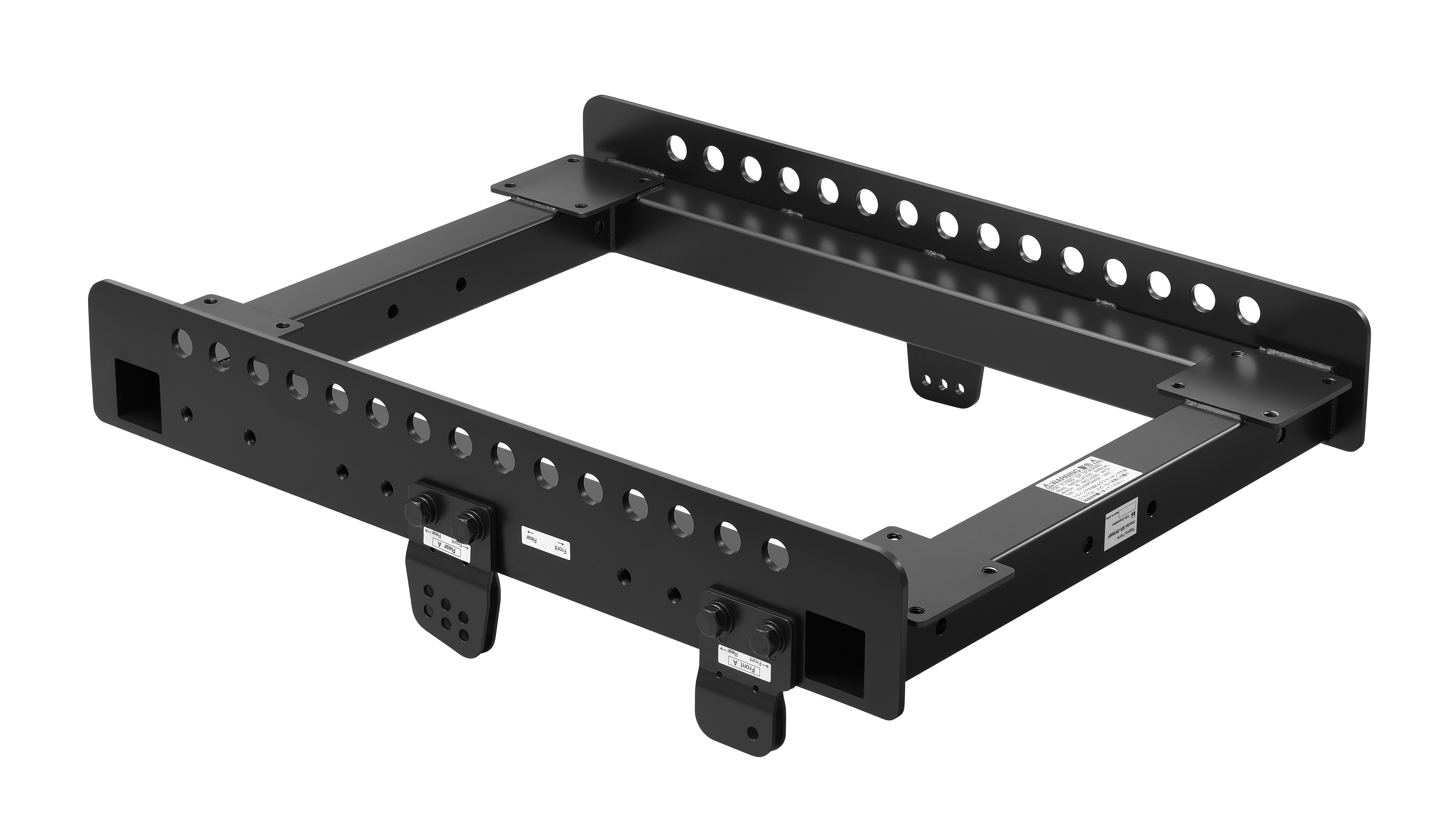

SR-RF8WP Rigging Frame

SR-RF8WP

SR-RF8WP

The SR-RF8WP Rigging Frame is used for flying the SR-C8LWP, SR-C8SWP, or SR-C15BWP Line array speakers.

Specification
Applicable Speaker SR-C8LWP, SR-C8SWP, SR-C15BWP
Number of Speakers to be Mounted Max. 12 (SR-C158BWP (option) is counted as 2 pieces.)
Finish Stainless steel, black, paint
Dimensions 510 (W) × 167 (H) × 690 (D) mm (20.08" × 6.58" × 27.17") (excluding bolt)
Weight 17 kg (37.48 lb) (including accessories)
Accessory Plate mounting bolt (M10) …12
