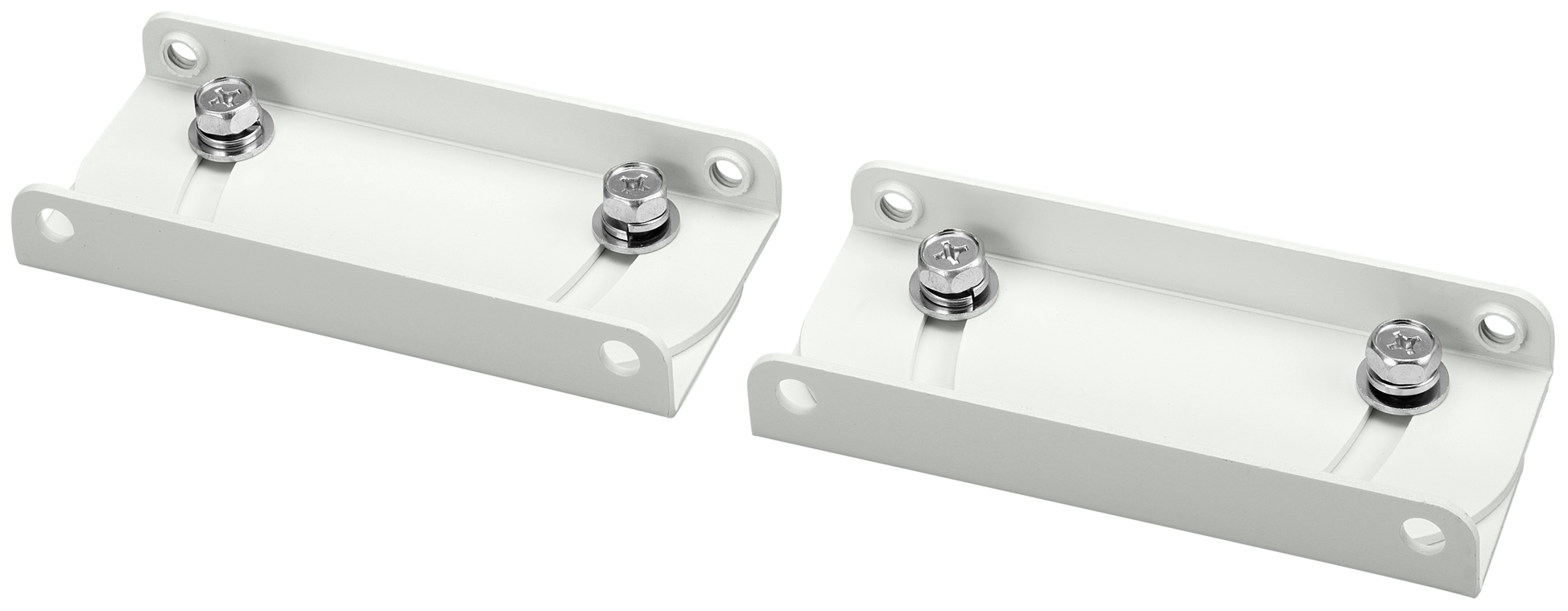

HY-WM1W Mounting Bracket

HY-WM1W

HY-WM1W

The HY-WM1W is used exclusively to mount the HX-5 series speaker system to a wall or ceiling. This bracket permits the speaker to be tilted downward up to 20%%d from the horizontal when the speaker is mounted on a wall, or tilted up to 20%%d from the vertical when the speaker is mounted on a ceiling. This bracket is designed for indoor use.

Specification
Finish Steel plate, white, semi-gloss paint
Dimensions 62 (W) × 142 (H) × 22 (D) mm
Weight 750 g
Accessory Speaker mounting bolt (M8) with washer …4
Product Composition Speaker mounting bracket …2
