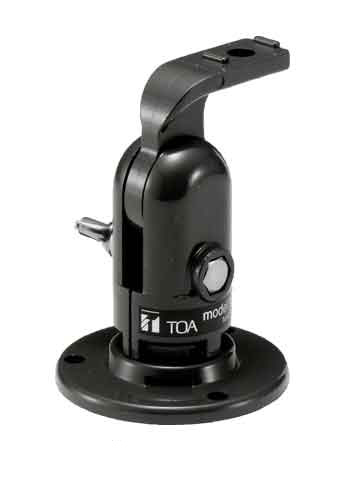

YS-151S Swivel Bracket

YS-151S

YS-151S

The YS-151S is a swivel bracket for mounting small horn speakers (not usable for car mounting). It permits the adjustment of the speaker installation angle for up to 360゜ horizontal and 180゜ vertical. The YS-151S features the strong, weather-resistant construction made of zinc.

Specification
Finish Bracket : Zinc, black, paint
Hexgon headed bolt, butterfly nut, coiled spring, and washer: Stainless steel
Weight 430 g
Applicable speakers SC-610, SC-610M, SC-610T, SC-615, SC-615M, SC-615T, SC-630,
SC-630M, SC-630T
Mounting method Mounting using
1. M6 bolt (3 pcs)
2. G16 cable pipe
3. Band
Note
(1)Cable pipe (G16)can be directly connected if the base is removed by loosening the butterfly nut.
(2)Bands should only be used for temporary mounting.Avoid using the bands in a vibratory place or
in a place that exposes the unit to harsh weather conditions.
