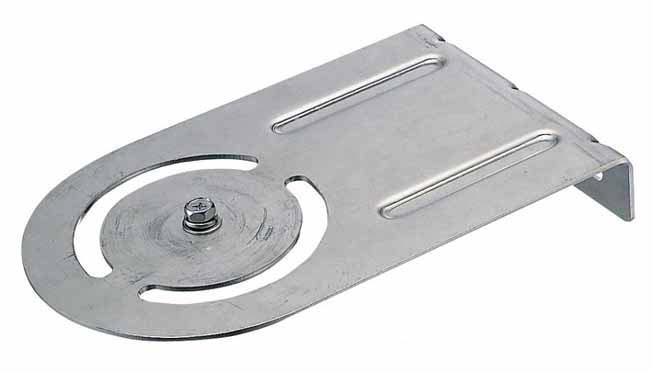

SP-301 Speaker Mount Bracket

SP-301

SP-301

The SP-301 Speaker mounting bracket is used to mount a horn speaker to a wall. Note: For added safety, reinforce mounting brackets and mounting bands when installing a speaker in a location that will be exposed to significant vibration and/or strong wind. It is also recommended that the installed speaker, mounting brackets, and mounting bands be checked periodically to assess potentially dangerous excessive wear and/or loose connections.

Specification
Load Capacity 5 kg (11 lb)
Finish Bracket: Stainless Steel
Screw: Stainless Steel
Weight 910 g (2.01 lb) (bracket only)
Product Composition Mounting bracket …1,
Mounting screw (M10 × 25 bolt set, M8 ×20 bolt set) …each 1 set
