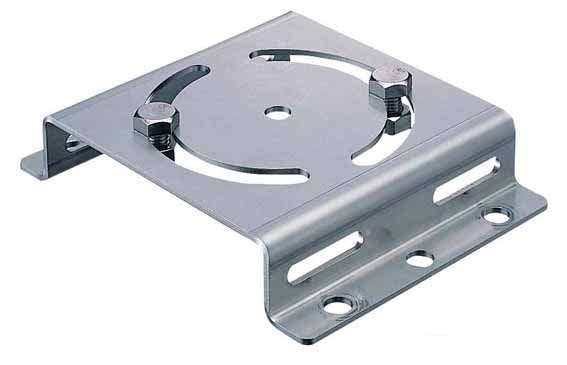

SP-201 Speaker Mount Bracket

SP-201

SP-201

The SP-201 Speaker mounting bracket is used to mount a horn speaker to a wall. It can also mount the speaker on a φ200 - φ340 mm (φ7.9" - φ13.4") pole in conjunction with the optional YS-60B. Note: For added safety, reinforce mounting brackets and mounting bands when installing a speaker in a location that will be exposed to significant vibration and/or strong wind. It is also recommended that the installed speaker, mounting brackets, and mounting bands be checked periodically to assess potentially dangerous excessive wear and/or loose connections.

Specification
Load Capacity 10 kg (22 lb)
Finish Bracket: Stainless Steel
Screw: Stainless Steel
Weight 610 g (1.34 lb) (bracket only)
Product Composition Mounting bracket …1,
Mounting screw (M10 × 25 bolt set, M8 ×20 bolt set) …each 1 set
