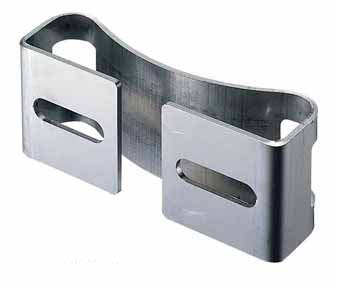

SP-131 Speaker Mount Bracket

SP-131

SP-131

The SP-131 can mount a wide horn speaker or horn speaker on a pole in conjunction with the optional YS-60B. It is comprised of two brackets. Note: For added safety, reinforce mounting brackets and mounting bands when installing a speaker in a location that will be exposed to significant vibration and/or strong wind. It is also recommended that the installed speaker, mounting brackets, and mounting bands be checked periodically to assess potentially dangerous excessive wear and/or loose connections.

Specification
Load Capacity 5 kg (11 lb) *
Finish Bracket: Stainless Steel
Screw: Stainless Steel
Weight 330 g (0.73 lb) (per bracket)
Product Composition Mounting bracket …2,
Mounting screw (M10 × 25 bolt set, M8 ×20 bolt set) …each 1 set
