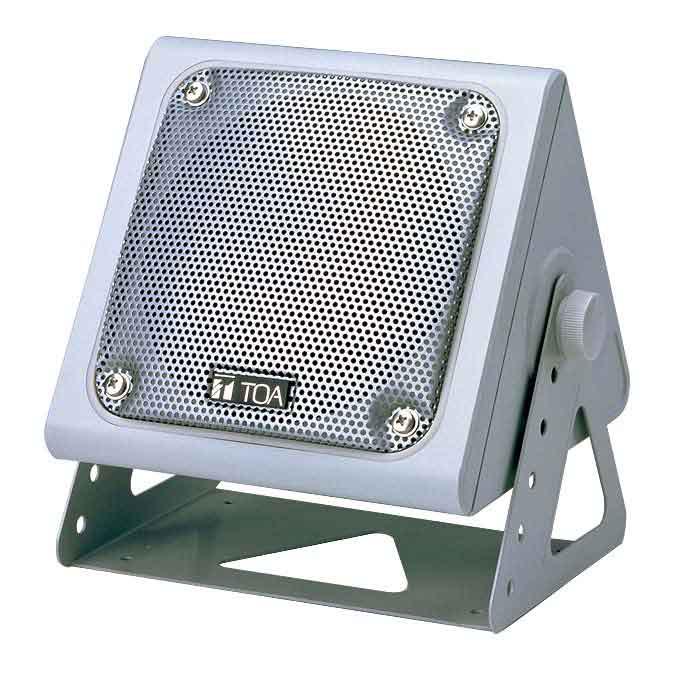

BS-5W Box Type Weatherproof Speaker

BS-5W

BS-5W

The BS-5W is splashproof wall-mounted speaker employing a splashproof 10 cm full-range speaker. Applications of this speaker include uses at outdoor locations under eaves which can avoid direct water splash and at highly humid locations including locker rooms of shower rooms, swimming pools, and bath rooms.

Specification
Type Sealed type
Speaker Component 10 cm Dynamic Cone-type Speaker
Rated Input 5W
Impedance 2k ohms (5W), 3.3k ohms (3W), 5k ohms(2W)
Sound pressure level 90dB (1W,1m)
Frequency response 120 〜 18,000Hz
Operating Temperature -20℃ to +55℃
Dimensions(W×H×D) 198×177×159 mm
Weight 1.4 kg (3.31 lbs)
