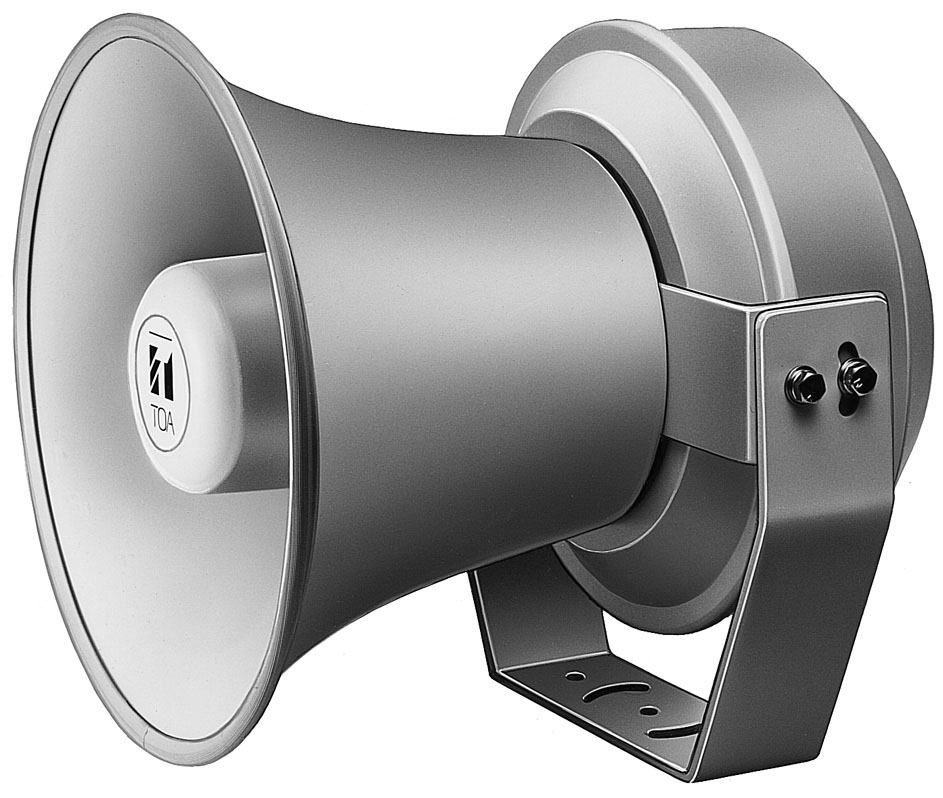

TH-100 Reflex Horn
TH-100
The TH-100 is a large power input horn designed for addressing to a large congregation. Two driver units (option) are attached to the horn.
| Applicable Driver Unit | TU-630, TU-630M, TU-650, TU-650M * |
|---|---|
| Driver Unit Coupling | 1-3/8" - 18 threads × 2 |
| Cut-Off Frequency | 140 Hz |
| Finish | Horn flare, inner horn, cover: Aluminum, ivory white, paint Bracket: Steel, ivory white, paint |
| Dimensions | 482 (W) × 511 (H) × 538 (D) mm |
| Weight | 14.1 kg |
| Accessory | Connection cord (5 m) ………1 |
- * Driver Installation
(1) When the driver units cannot be mounted to the horn's driver coupler, remove the coupler first.
Attach the drivers to the coupler, then mount the coupler assembly to the horn again.
(2) Speaker cable connection.
