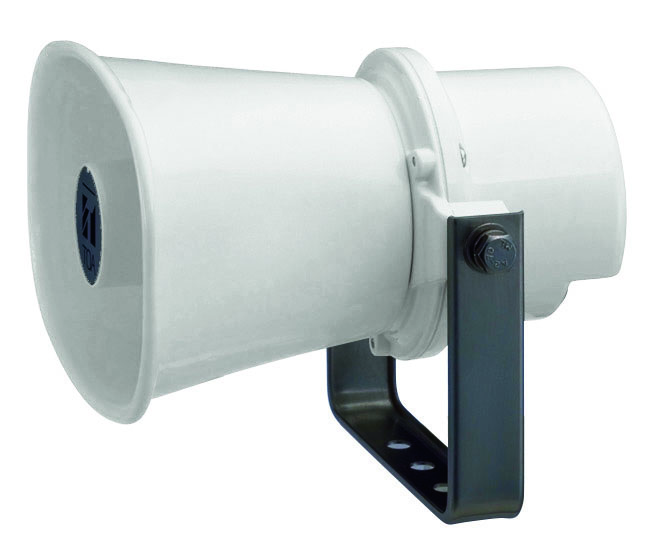

SC-610 Paging Horn Speaker
SC-610
TOA's SC-610 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
| Rated Input | 10 W (Mobile Mount use: 5 W) |
|---|---|
| Rated Impedance | 8 Ω |
| Sound Pressure Level | 110 dB (1 W, 1 m at 500 to 2,500 Hz peak level) |
| Frequency Response | 315 - 12,500 Hz |
| Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm ) | -24 dB at 1 kHz |
| IP Code | IP 65 |
| Polarity | Hot: Black, Com: White |
| Operating Temperature | -20%%dC to +55%%dC (must be free from dew condensation) |
| Finish | Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length) |
| Dimensions | 172 (W) × 161 (H) × 188 (D) mm |
| Weight | 1 kg |
| Option | Swivel bracket: YS-151S (Can be used instead of the supplied bracket.) |
