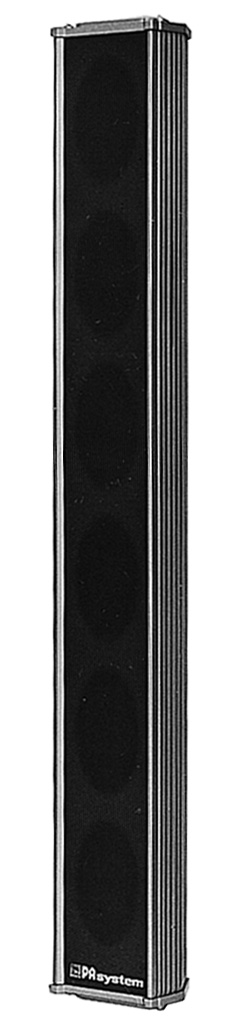

TZ-301 Metal-case column speaker
TZ-301
The TZ-301 Column Speaker employs multiple cone speakers arranged vertically on a single baffle board to provide wider horizontal directivity.
| Rated Input | 30 W |
|---|---|
| Rated Impedance | 330 Ω (30 W), 670 Ω (15 W), |
| Sound Pressure Level | 100 dB (1 W, 1 m) |
| Frequency Response | 160 - 10,000 Hz |
| Speakers component | 127 × 178 mm cone-type × 6 |
| Water Resistance | IP-X3 equivalent |
| Finish | Enclosure: Extruded aluminum, silver gray, fully-glazed, baked paint Grille: Punched net, black, matte, baked paint Mounting bracket: Steel plate, silver gray, fully-glazed, baked paint |
| Dimensions | 167 (W) × 1256 (H) × 141 (D) mm |
| Weight | 12.2 kg (unit only), 12.8 kg (including mounting bracket) |
| Accessory | Mounting bracket ……2, Mounting bolt, washer, packing ……1 set |
- [NOTE] A drainage hole is provided on the speaker cable side of the cabinet. When installing the speaker outdoors, make sure that its speaker cable side faces the ground. The speaker must be installed upright or facing down. Installing the speaker in any other position may render the drainage hole ineffective, eventually leading to an electrical failure or other damage.
