CC-3350B Video Signal Adaptor / Video Transformer
CC-3350B HH

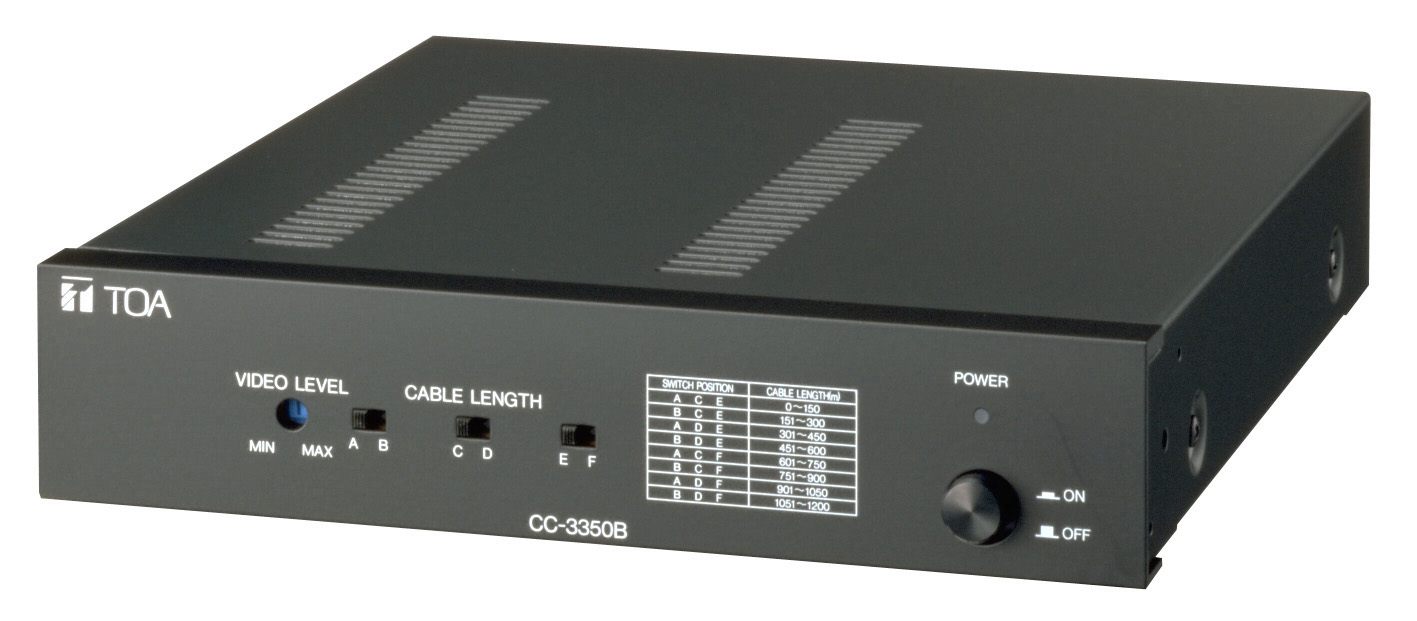

The CC-3350B video signal adaptor transmits video signals from camera to monitor over a twisted pair cable to be used in locations where co-axial cables cannot be used. An internal DC regenerative circuit and a high-frequency compensating circuit ensure stable signal reception. Video signals can be transmitted over distance of up to 1.2 km.
| Power Requirements | 230 V AC, 50/ 60 Hz |
|---|---|
| Power Consumption | Approx. 4 VA (3.5 W) |
| Camera/Video Input | Signal adaptor : 1 × VBS 1.2 V (p-p) 110 Ω, balanced (Screw terminal) Transformer : 1 × VBS 1.0 V (p-p) 75 Ω, balanced (BNC) |
| Camera/Video Output | Signal adaptor : 2 × VBS 1.0 V (p-p) 75 Ω,unbalanced (BNC) Transformer : 1 × VBS 1.2 V (p-p) 110 Ω, unbalanced (Screw terminal) |
| High Range Compensation | Max. 40 dB at 5 MHz with cable length select switch set to |
| Cable Length Select Switch | 8 positions in step of 150 m (164 yd.) Max. 1,200 m (1,312 yd.) |
| Appricable Cable | Characteristic impedance : 110 Ω Core diremeter : 0.65 mm (0.026") Signal-twisted pair cable |
| Video Level Variable Range | Approx. ±3 dB |
| Ambient Temperature | -10℃ 〜 50℃ (14゜F 〜 122゜F) |
| Color | Signal adaptor : Black (mat) Transformer : Off white |
| Dimensions (W×H×D) | Signal adaptor : 210(8.27")×47(1.85")×248.5(9.78") mm Transformer : 113(4.45")×34.6(1.36")×51(2.01") mm |
| Weight | Signal adaptor : 1.7 kg (3.75 lb.) Transformer : 300 g (0.66 lb.) |
| Accessory | Power cord……1 |
| Rack Mounting Bracket | MB-15B-J : For rack mounting two CC-3350B units MB-15B-BK : For rack mounting one CC-3350B unit |
