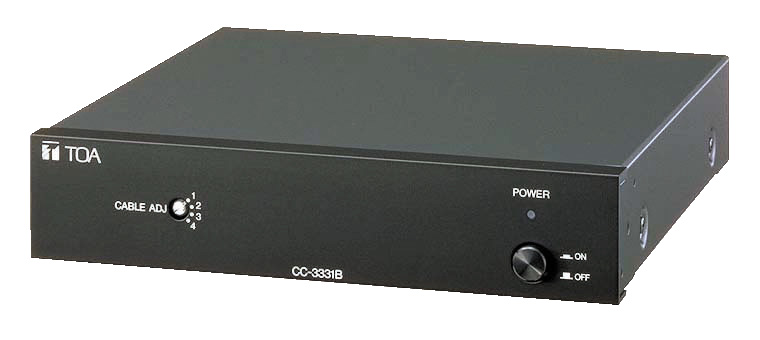

CC-3331B Cable Compensator
CC-3331B 220
When there is a long distance between the camera and monitor, the high frequency component of a video signal transmitted over the coaxial cable attenuates, and the resolution drops off. The CC-3331B cable compensator prevents such video signal deterioration to provide the clearest possible on-screen images.
| Power Requirement | 220 VAC, 50/60 Hz |
|---|---|
| Power Consumption | 5 W |
| Video Input | VBS 1 V (p-p) 75 Ω (BNC) |
| Ambient Temperature | -10 ℃ to +50 ℃ |
| Finish | Panel: Aluminum extrusion, black, 30% glossy Case: Pre-coated steel plate, black, 30% glossy |
| Dimensions | 210 (W) × 47 (H) × 248 (D) mm |
| Weight | 1.8 kg |
| Option | Rack mounting bracket: MB-15B-J (For rack mounting two CC-3331B units) MB-15B-BK (For rack mounting one CC-3331B unit) |
Cable length
1
2
3
4
Cable
5C-2V
500m
1000m
1500m
2000m
7C-2V
600m
1200m
1800m
2400m
10C-2V
750m
1500m
2200m
3000m
