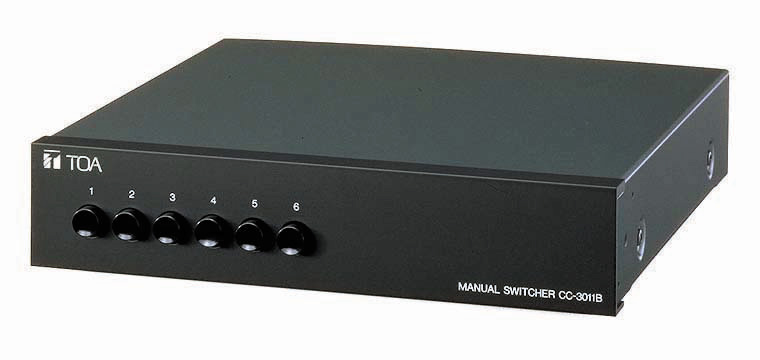

CC-3011B Manual Switcher

CC-3011B

CC-3011B

A maximum of 6 cameras can be manually switched and each camera scene displayed on the monitor.

Specification
Video Input Max. 6 inputs, VBS 1.0 V(p-p) 75 Ω, BNC
Video Output 1 output, VBS 1.0 V(p-p) 75 Ω, BNC
Switches Mechanical Lock Type
Finish Panel: Aluminum extrusion, black, 30% gloss
Case: Pre-coated steel plate, black, 30% gloss
Dimensions 210 (W) × 47 (H) × 246 (D) mm
Weight 1.4 kg
Option Rack Mounting Bracket: MB-15B-J (for rack mounting two CC-3011B units)
MB-15B-BK (for rack mounting one CC-3011B unit)
