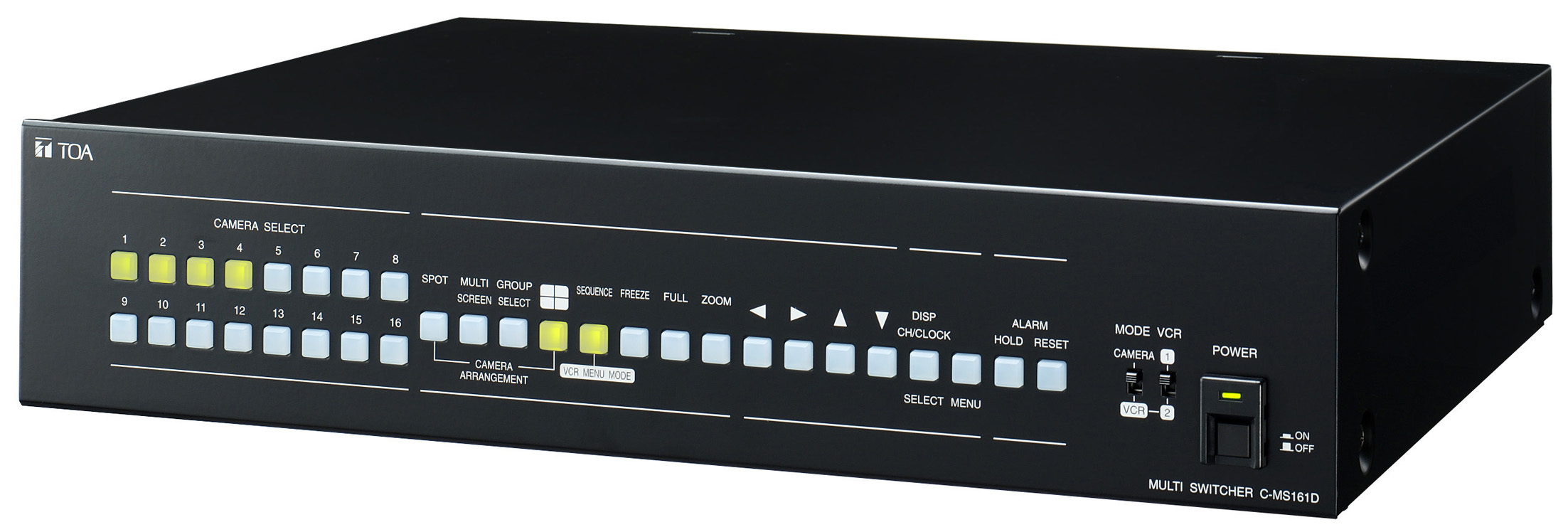

C-MS161D 16-Channel Duplex Multiplexer
C-MS161D NTSC
Permitting connection of up to 16 cameras, the C-MS161D multiplexer monitors real-time camera images, records them on the video cassette recorder or reproduces recorded images. It is provided efficient surveillance by the motion detection, which preferentially records the camera images that had any motion, and which as an alarm can interface with external equipment, such as VCR. It is provided with the Frame Recording Function that records all connected cameras on a video cassette recorder one after the other while displaying real-time camera images on the multiple-split screen (4-, 9-segment screen, etc.) full screen, or zoom screen. Recorded images can also be reproduced on the multiple-split screen, full screen or zoom screen.
- (*2) 0 dB = 1 V
| Power Source | 110 - 120 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 18 W (320 mA) |
| Video Input | Camera input: 16 channels, VBS 1.0 V(p-p) 75 Ω, BNC, 2:1 interlace(*1) VCR input: 2 channels, VBS 1.0 V(p-p) 75 Ω, BNC |
| Video Output | Camera output: 16 channels, VBS 1.0 V(p-p) 75 Ω, BNC, loop-through output Monitor output: 2 channels (Either channel can be set as spot output.), VBS 1.0 V(p-p) 75 Ω, BNC VCR output: 2 channels, VBS 1.0 V(p-p) 75 Ω, BNC |
| Alarm | Alarm input: 16 channels, no-voltage make contact input, open voltage: 5 V DC, short-circuit current: 5 mA, D-sub connector (25 P) make/break is selectable by menu setting Alarm output: 1 channel, NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, D-sub connector (25 P) Video loss alarm output: 1 channel, NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, D-sub connector (25 P) Alarm hold output: 1 channel, NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, D-sub connector (25 P) Alarm cancel output: 1 channel, NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, D-sub connector (25 P) Motion detection output: 1 channel, NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, D-sub connector (25 P) Alarm time: MANUAL, 10 s, 15 s, 20 s, 30 s, 1 - 5 min (adjustable in 1-minute steps), Infinite Buzzer: ON or OFF (selectable) |
| Remote | Remote input: 12 channels (6 channels: binary input), no-voltage make contact input, open voltage: 5 V DC, short-circuit current: 5 mA, D-sub connector (25 P) Remote output: 10 channels (6 channels: binary output), NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, D-sub connector (25 P) |
| Other Function | Motion detection, Selection of the motion detection pattern, key lock, automatic recognition on time-lapse recording, selection of the recording pattern, selection of the language (English/Spanish/French) on the menu screen |
| VCR Control | Switcher control input: 2 channels, no-voltage make contact input, open voltage: 5 V DC, short-circuit current: under 0.3 mA, screwless connector Alarm output: 2 channels, NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, screwless connector Alarm cancel output: 2 channels, NPN open collector output, withstand voltage: 20 V DC, control current: under 20 mA, screwless connector |
| Audio | VCR input: 2 channels, -10 dB(*2), over 50 kΩ, RCA pin jack Monitor output: 1 channel, -10 dB(*2), low impedance, RCA pin jack |
| External Control | RS-232C: 1 channel, D-sub connector (9 P, male) Remote control terminal: 1 each of input and output, screwless connector |
| Dedicated Remote Controller | Controlled by dedicated remote controller C-RM100 (option), C-RM500 (option) |
| Recording Output | At least 1 frame intervals |
| Screen Display | [Camera screen] Full screen selection: Selection of the desired camera Multiple-split screen: 4-, 9-, 10-, and 16-segment screen (all intermittent displaying, changeable positioning on the segment screen.) Zoom: Electronic 2x zoom for the desired camera (zooming position changeable, auto tilt, auto panning possible) Freeze: Freeze screen for individual cameras Automatic sequence: Full screen (individual cameras), 4-segment screen (camera groups), switching time intervals of 0-99 seconds that can be set in 1 second units. [VCR reproduction screen] Full screen selection: Selection of the desired camera Multiple-split screen: 4-, 9-, and 16-segment screen Zoom: Electronic 2x zoom for the desired camera (zooming position changeable, auto tilt, auto panning possible) Freeze: Freeze screen for individual cameras [Spot screen] Full screen selection: Selection of the desired camera. Automatic sequence: Full screen (individual cameras), switching time intervals of 0-99 seconds that can be set in 1 second units. |
| Indication | Camera title: Up to 8 characters (alphanumeric and symbols) camera No. and time/date can be displayed. |
| Number of Effective Pixels | 720 × 464 pixels |
| Operating Temperature | 0℃ to +40℃ |
| Finish | Panel: Aluminum extrusion, black, 30% gloss Case: Surface-treated steel plate, black, 30% gloss, paint |
| Dimensions | 420 (W) × 96.6 (H) × 333.9 (D) mm |
| Weight | 4.3 kg |
| Accessory | Power cord (2 m) ……1 |
| Option | Rack mounting bracket: MB-23B |
- (*1) That line-locked cameras cannot be connected to the C-MS161D
