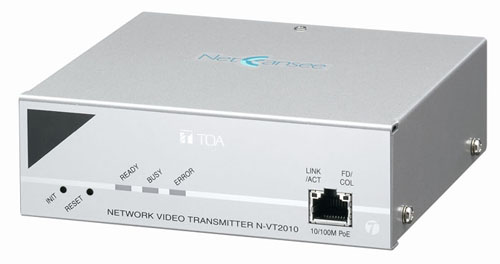

N-VT2010 Network Video Transmitter
N-VT2010 PL
The N-VT2010 Network Video Transmitter can be connected directly to a LAN (10 BASE-T/100 BASE-TX) and transmits camera's video and audio signals over the network. It features simultaneous transmission of both MPEG-4 and JPEG images, permitting smoothly-moving images and high-quality still images to be recorded and monitored. The N-VT2010 also transmits bidirectional high-quality audio signals as uncompressed PCM or with sub-band ADPCM compression. Besides an external power source of AC 24 V or DC 24 V, the N-VT2010 is compatible with Power over Ethernet (PoE), thereby eliminating the necessity of power cable wiring. The N-VT2010 has a 12 V DC power output which supplies power to the equipment such as CV Series cameras and the remote controllers. The supplied software decoder permits the remote surveillance system to be easily configured on a personal computer. In addition, the Digital Recorder and Combination Dome Camera can also be remotely controlled.
- * 0 dB = 1 V
| Power Source | 24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af) |
|---|---|
| Power Consumption | Power output 0.35 A 12 W: at 24 V AC (11 W: PoE, 500 mA: 24 V DC) Power output none 6 W: at 24 V AC (5 W: PoE, 250 mA: 24 V DC) |
| Power Terminal | Screwless connector (Solid cable: φ 0.4 - φ 1.2 mm (AWG 26-16) Stranded cable: 0.3 - 1.25 m㎡ (AWG 22-16)) |
| Power Output | 12 V DC, max. 0.35 A, screwless connector |
| Video Input | 1 channel, VBS 1.0 V(p-p), 75 Ω, BNC jack, PAL |
| Audio Input | 1 channel, unbalanced, LINE/MIC changeable LINE: -10 dB*, 10 kΩ, RCA pin jack MIC: -60 dB*, 2.2 kΩ, mini-jack, volume adjustable phantom power supply (9 V, can be set with switch) |
| Audio Output | 1 channel, -10 dB*, low impedance, unbalanced, RCA pin jack |
| Audio Frequency Response | 50 Hz - 14 kHz (when the sampling frequency is 32 kHz) |
| Contact Input | 2 channel, no-voltage contact input, open voltage: 3 V DC, short-circuit current: 10 mA or less, loop resistance: 200 Ω or less, screwless connector |
| Contact Output | 2 channel, open collector output, withstand voltage: 30 V DC, control current: 50 mA, screwless connector |
| Serial Port | RS-232C: D-sub connector (9 pins, male), RS-485: screwless connector |
| Network I/F | 10 BASE-T/100 BASE-TX, Auto-Nego/Manual: RJ45 connector |
|---|---|
| Network Protocol | TCP, UDP, SIP, RTP, IGMP, HTTP, ARP, DHCP, DNS, SNTP, FTP, SMTP |
| Video Compression/Resolution | MPEG-4: D1 (720 × 576), Half D1 (720 × 288), CIF (352 × 288) JPEG: D1 (720 × 576), Half D1 (720 × 288), CIF (352 × 288), VGA (640 × 480), QVGA (320 × 240), QQVGA (160 × 120) |
| Frame Rate | MPEG-4 (D1, max. 25 fps) + JPEG (D1, max. 5 fps) |
| Audio Compression/Decompression | Sub-band ADPCM, PCM (non-compression) |
| Audio Sampling Frequency | 8 kHz, 32 kHz |
| Image Transfer Rate | MPEG-4: max. 4 Mbps |
| Simultaneous Connected Number | 5 (MPEG-4: 4, JPEG: 1), In streaming mode: No limit (MPEG-4 only) |
| Web Browser | Internet Explorer 6/7 |
| Other Function | Password authentication, Motion detection |
|---|---|
| Operating Temperature | 0 ℃ to +50 ℃ (32 ゜F to 122 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Case: Surface-treated steel plate, silver, paint |
| Dimensions | 136 (W) × 44 (H) × 127.9 (D) mm (5.35" × 1.73" × 5.04") (excluding the projection and rubber foot) |
| Weight | 700 g (1.54 lb) |
| Accessory | CD (Software decoder: N-SD2000, Manuals (PDF)) …1, Power conversion cable …1 |
