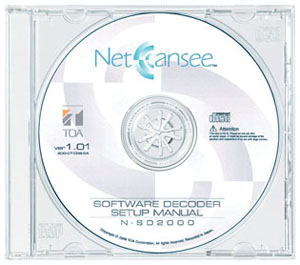

N-SD2000 Software Decoder
N-SD2000 Y
The N-SD2000 Software Decoder is designed for use in a Windows PC. It permits simultaneous monitoring of up to four from live images of TOA network color cameras, network combination dome cameras and network video transmitters or from recorded images of network digital recorders, which are all connected to LAN. Audio signals can also be transmitted and received.
| Required Personal Computer | PC/AT compatible |
|---|---|
| Requirements | CPU: Pentium 4, 3 GHz or higher, Core 2 Duo 1.5 GHz or higher Memory: 512 MB or more Display adapter: XGA (1024 × 768 pixels), Recommended: Intel Chipset Usable on DirectX 9.0a or later Sound controller: Usable on DirectX 9.0a or later Network adapter: 100 BASE-TX or higher |
| OS | Windows XP Professional (32-bit edition) |
| Media | CD-ROM |
| Function | Establishment of connections to TOA network color camera, network combination dome camera and network video transmitter Connection of live image: Manual, 24-hour, simultaneousness with 4ch (group), sequence, streaming, Alarm Connection of audio: Live, bidirectional, PTT, simultaneousness with 4ch Establishment of connection to Network video recorder N-DR2000 (*1) Playback, search and export of recorded data (images only) Screen display Full screen, selection of 1 segment or 4 segment split screen Network device control Display of input/output contact state Control of output contact Control of TOA digital video recorder, multiplexer and combination dome camera Controllable device Combination dome camera: C-CC514, C-CC564/574, C-CC714, C-CC764, (Pointview possible) C-CC774 Combination dome camera: C-CC551/554(*1), C-CC501/504(*1) (Pointview impossible) Digital video recorder: C-DR161/091 series (*1) Multiplexer: C-MS161/91 series (*1) Remote controller: C-RM100, C-RM700, C-RM500(*1) Serial bridge Menu control of network color camera Other functions Automatic detection, restart, setting change, LED flashing, and display of the number of units for the network-connected devices, Operation warning display, Registration and deletion of the connected devices, and export of equipment list data (compatible with the N-SD0160), Parameter settings, Connection and disconnection between the network video receiver and each of network color cameras, network combination cameras and network video transmitters, Global cutoff, Motion detection settings, Snapshots, Digital zoom, Stillness, Access restriction, System log storage, Operation log storage, Firmware upload, Configuration file upload/download, Automatic restart |
- (*1) Discontinued model
- ※ Pentium and Core are the trademark of Intel Corporation.
- ※ Windows and DirectX are the trademark of Microsoft Corporation.
- ※ Note The software decoder may malfunction or have its performance downgraded if other application software is running together. Two or more software decoders cannot be started with one PC. When using the decoder under multi-display environment, take care the following. Specify only a single display for running this software program. Traveling between displays during operation may cause equipment malfunction. Use the digital zoom function while the image is stopped temporarily. Failure to do so could cause equipment malfunction.
- ※ Notes on MPEG-4 patent license THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA,LLC. SEE HTTP://WWW.MPEGLA.COM.
