N-SD0160 Software Decoder
N-SD0160 Y
The N-SD0160 Software Decoder is designed for use in a Windows PC. It permits up to sixteen JPEG images of LAN connected TOA's network cameras, network combination dome cameras, or network video transmitters to be displayed simultaneously. These images can also be recorded on the PC's hard disk using the simple recording function.
| Required Personal Computer | PC/AT compatible |
|---|---|
| Requirements | CPU: Celeron 2.0 GHz or higher Drive: CD-ROM drive Memory: 1024 MB or more Hard disk: 10 GB or more Display adapter: XGA (1024 × 768 pixels) or more Usable on DirectX 7.0 or later Network adapter: 100 BASE-TX or higher ※ When using simultaneously with the N-SD2000 Software Decoder (optional) CPU: Core 2 Duo E6600 (2.4 GHz, 4 MB L2 cache) or greater Memory: 2 GB (1 GB × 2) dual channel DDR2-SDRAM memory (667 MHz) or greater Display adapter: 1920 × 1200 pixels or more Usable on DirectX 9.0a or later, recommended Intel Chipset Network adapter: 1000 BASE-T or higher |
| OS | Windows XP Professional (32-bit edition) |

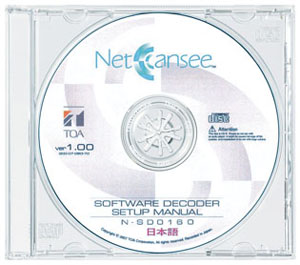

| Media | CD-ROM Contents: N-SD0160 Installer, "Viewer" installer, FTP Server Installer, Instruction manuals (PDF files) |
| Function | Image display of the network camera, network combination dome camera, and network video transmitter: JPEG (Max. 1 fps per camera) Number of cameras displayed simultaneously: Up to 16 Number of cameras registered: Up to 100 Screen display: Single or 4/9/16-segment screen display, full screen display (*1), Switch display Manual recording: Max. approx. 300 s Alarm recording (*2): Max. approx. 1800 s, up to 16 cameras simultaneously, up to 1000 files (*3) Simple control of network combination dome cameras (pan, tilt, and zoom) |
