CA-107 (15W max.) Mobile Amplifier with Cassette Deck
CA-107

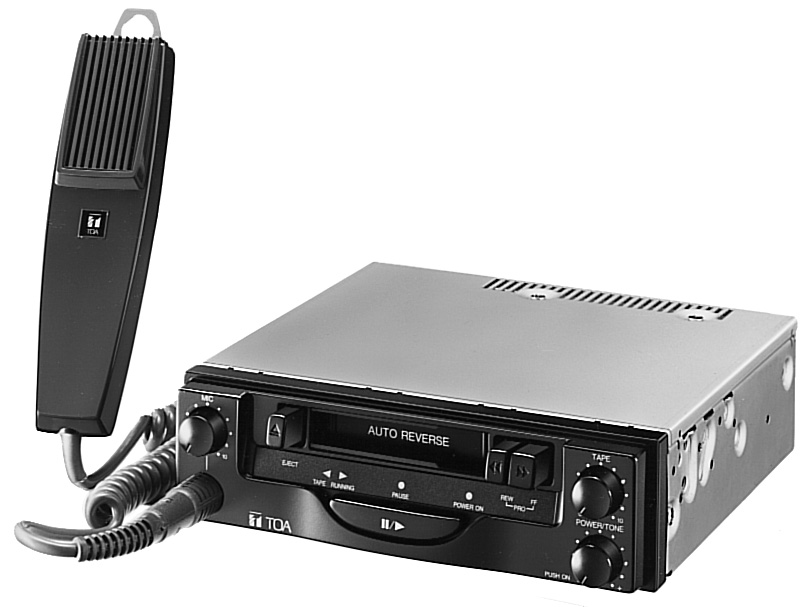

The TOA CA-107 is a DC-operated car amplifier, which comes with an auto-reverse cassette deck.
| Power Requirements | Standard Voltage : 13.2 V DC Usable Voltage : 10 to 16 V DC |
|---|---|
| Power Consumption | 1.8 A or less (rated output) |
| Output Power | Rated 10 W, |
| Distortion | Less than 5% (1 kHz, rated output) |
| Output Impedance | 8 Ω |
| Input Impedance Sensitivity | MIC : 600 Ω, -48 dBV(4mv) |
| Frequency Response | 100 Hz 〜 10,000 Hz(deviation : within 3 dB) |
| Muting Level | -30 dB |
| Cassette Deck | Tape Track : 2-track Monaural Reproduction (Auto-reverse) Tape Speed : 4.76 cm/sec. Wow and Flutter : Less than 0.2% |
| Usable Tapes | Normal Tape only |
| Finish | Front panel : ABS resin Case : Zinc-gilt steel |
| Dimensions(W×H×D) | 178(7.01") × 50(1.97") × 181.5(7.15") mm |
| Weight | 1.3 kg (2.87 lb.) |
| Microphone | Unidirectional MIC with Talk Switch Impedance : 600 Ω Sensitivity : -73 dB, ±3 dB |
