M-110 Stereo Mixer
M-110

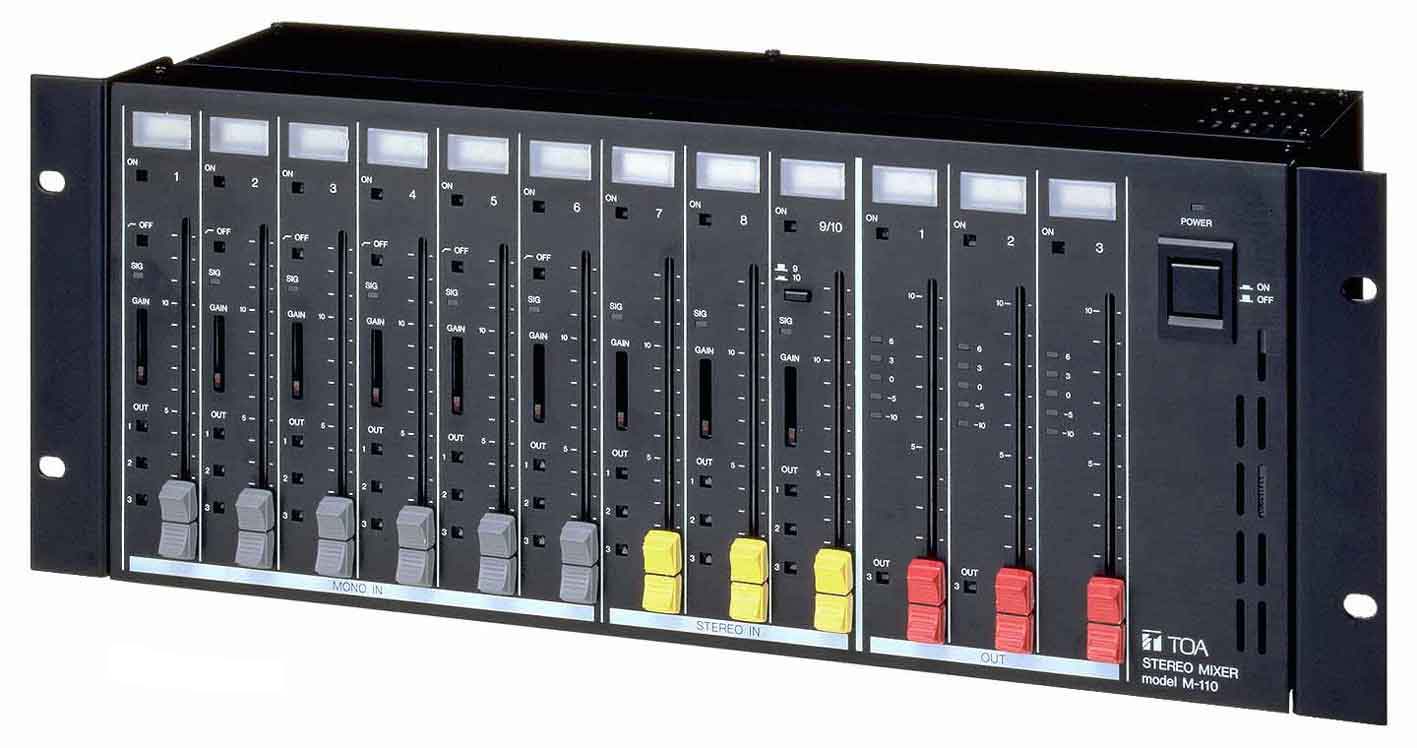

The M-110 is a stereo mixer mountable in a standard 19" rack (4-unit size), and realizes easy operation and visibility thanks to the slide faders (100 mm) for IN/OUT volume controls. It provides three bus lines (monaural×2 and stereo×1) allowing the selection of employed a bus line for each input, and output signal may not be distorted for excessive input as the limitter for monaural inputs is built in the unit. Easy connection can be made from the rear or upper side as the connector section of the rear panel can be moved to the upper side.
- ※0 dB=0.775 V rms
| Power Requirements | 100〜240 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 33 W |
| Frequency Response | 20 Hz〜20,000 Hz +1, -3 dB |
| Distortion (T.H.D) | Less than 0.05 % (MONO IN to MONO OUT) at 1 kHz Input : -30 dB※, Output : +4 dB※ Less than 0.05 % (STEREO IN to STEREO OUT) at 1 kHz Input : -20 dB※, Output : +4 dB※ |
| Noise Level (IHF-A) | Less than -90 dB※ (Fader : Minimum, MONO OUT/STEREO OUT) |
| Inputs | Input 1〜6 (MONO) : (Line) +10 dB〜-20 dB※ 1 kΩ, XLR type 3P Female connector (Electrical Balanced) (Mic) -30 dB〜-60 dB※ 1 kΩ (Line/Mic changeable) Input 7〜10 (STEREO) : +10 dB〜-20 dB※ 10 kΩ, pin jack (Unbalanced) (Input 9/10, switchable) Video input 9/10 : 1V (p-p) 75 Ω/pin jack (Input 9/10, switchable) Sub input (MONO 1, 2) : +4 dB※ 10 kΩ, phone jack (Unbalanced) Sub input (STEREO L, R) : +4 dB※ 10 kΩ, phone jack (Unbalanced) |
| Outputs | Output 1,2 (MONO) : +4 dB※ 600 Ω, XLR type 3P Male connector, phone jack (Electrical Balanced) Output 3 (STEREO) : +4 dB※ 600 Ω, XLR type 3P Male connector, phone jack (Electrical Balanced) REC Out 1 : -10 dB※ 1 kΩ, pin jack (Unbalanced) Video Out 1: 1V (p-p) 75 Ω, pin jack |
| Functions | Each input : Signal indicator, Gain control, Channel ON/OFF, Output assignswitch MONO input : Low cut filter ON/OFF switch, phantom power ON/OFF switch (+24 V, internal switch) Each output : Output level meter and channel ON/OFF switch Remote control terminal : One Make-contact output (2A) linking with the power switch |
| Finish | Panel : Aluminum, Alumite (black) , Case : Colored steel plate (black) |
| Dimensions(W×H×D) | 420 (16.5") ×177 (6.97") ×138.6 (5.46") mm (excluding the protrusion) |
| Weight | 5 kg (11.02 lb.) |
| Accessories | Rack mounting bracket……2 + Binding head tapping screw M5×20……4 + Binding head screw M4×10……………4, Power supply cord 2 m………1 |
