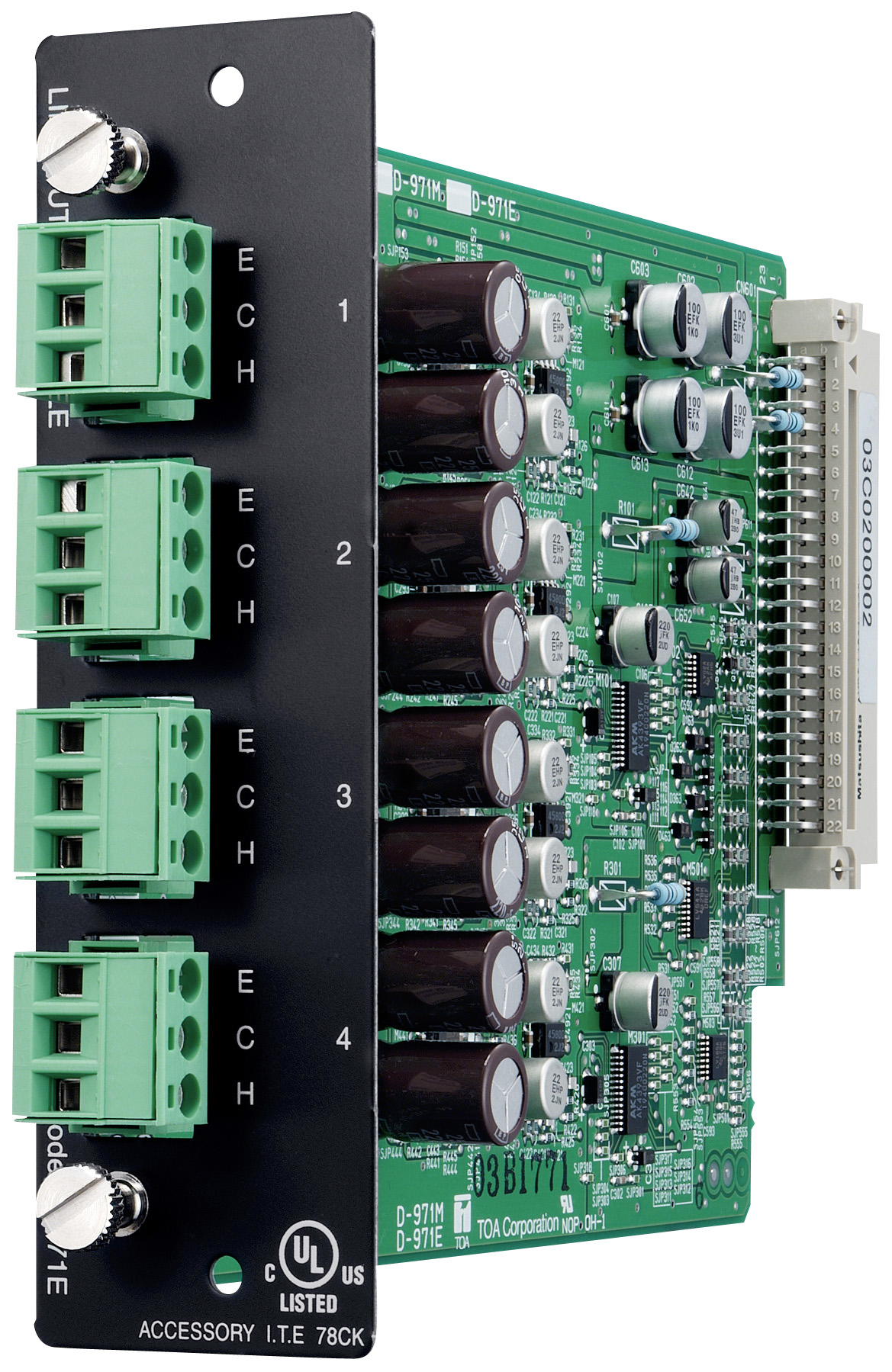

D-971E Line Output Module
D-971E
The D-971E is a 4-channel line output module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors.
- * 0 dB = 0.775 V
| Output | 4 channels, +4 dB*, adaptable load of over 600 Ω, electronically-balanced, removable terminal block (3 pins) |
|---|---|
| D/A Converter | 24 bits |
| Sampling Frequency | 48 kHz |
| Frequency Response | 20 - 20,000 Hz, ±1 dB |
| Dynamic Range | Over 100 dB (IHF-A weighted) |
| Total Harmonic Distortion | Under 0.05% |
| Finish | Panel: Pre-coated steel plate, black, 30% gloss |
| Dimensions | 35 (W) × 119.5 (H) × 178.4 (D) mm |
| Weight | 140 g |
| Accessory | Removable terminal plug (3 pins, preinstalled on the unit) …4 |
