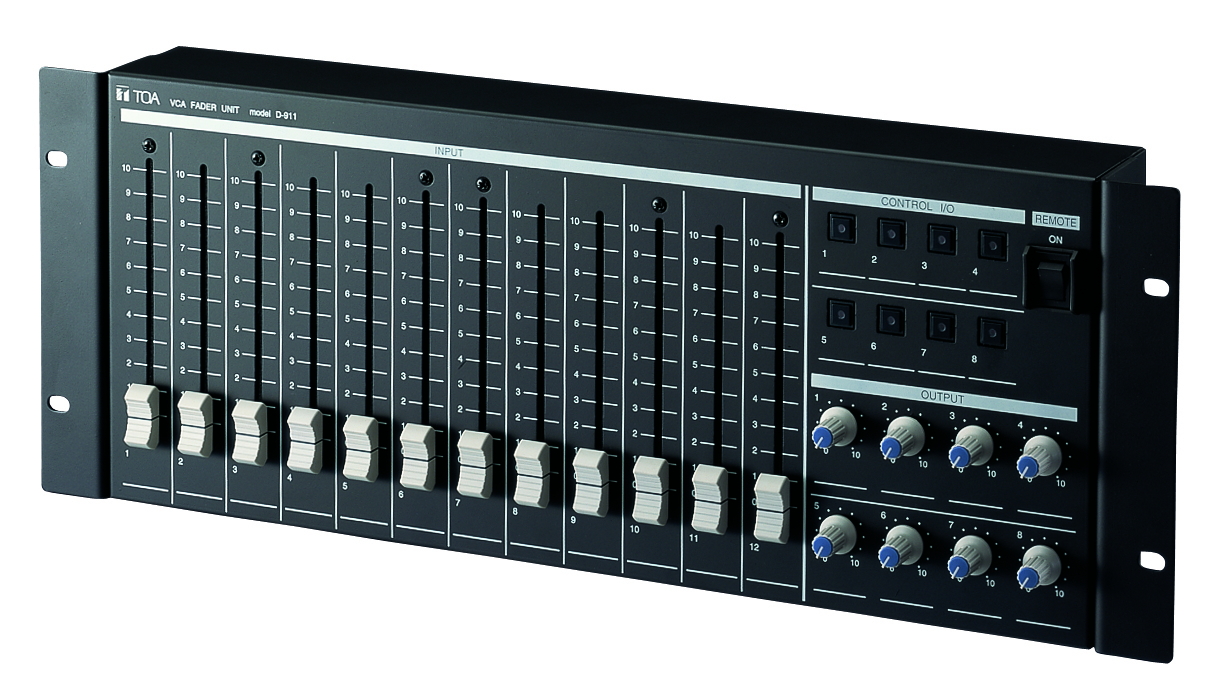

D-911 VCA Fader Unit
D-911
The D-911 is a dedicated VCA fader unit designed for use with the D-901 Digital Mixer, etc. Connecting the D-911 to the D-984VC, VCA control module permits the volume control of all channels and contact controls.
| Power Supply | 5 V DC (supplied from the optional D-984VC) |
|---|---|
| Connector | RJ45 connector × 8 |
| Input Fader Control | Input fader (100 mm) × 12 |
| Output Volume Control | Output volume control × 8 |
| Contact Control | Illuminated switch × 8 |
| Remote Output | No-voltage make contact output (contact capacity: 30 V DC, 4 A) |
| Remote Switch | Seesaw switch for activating the remote function of the power distributor |
| Finish | Panel: Pre-coated steel plate, black, 30% gloss |
| Dimensions | 482.6 (W) × 177 (H) × 61.3 (D) mm (excluding projection) |
| Weight | 2.7 kg |
| Accessory | Fader knob (Red, Yellow)…3 each, Volume knob (Red)…2, Rack mounting screw…4, Rack mounting bracket (preinstalled on the unit)…2 |
