D-2000AD1 Mic/Line Input Module
D-2000AD1

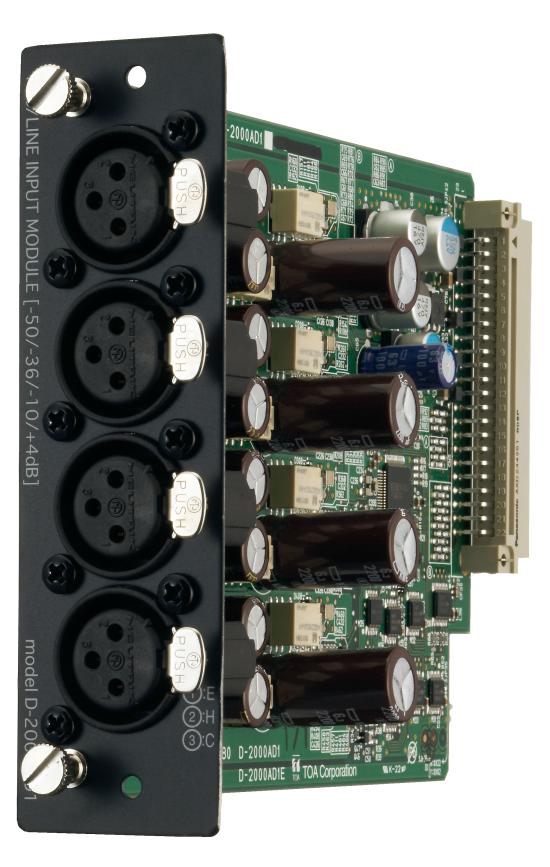

The D-2000AD1 is a 4-channel Microphone/Line Input Module designed for use with the D-2008SP Digital Mixing Processor Unit. It employs XLR type connectors.
- *0 dB = 0.775 V
| Input | 4 channels, Mic/Line selectable Mic: -50/-36 dB*, 2.6 kΩ, electronically-balanced Line: -10 dB*, 2.6 kΩ/+4 dB*, 7 kΩ, electronically-balanced Connector: XLR-3-31 equivalent Phantom power supply (48 V DC, can be used when set for the Mic) Ground lift switch |
|---|---|
| A/D Converter | 24 bit |
| Sampling Frequency | 48 kHz |
| Frequency Response | 20 Hz - 20 kHz, ±1 dB (+4 dB* input) |
| Dynamic Range | 104 dB (IHF-A weighted) or more (+4 dB* input) |
| Total Harmonic Distortion | 0.008 % or less (+4 dB* input) |
| Finish | Panel: Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 35 (W) × 119.5 (H) × 178.4 (D) mm (1.38" × 4.7" × 7.02") |
| Weight | 200 g (0.44 lb) |
