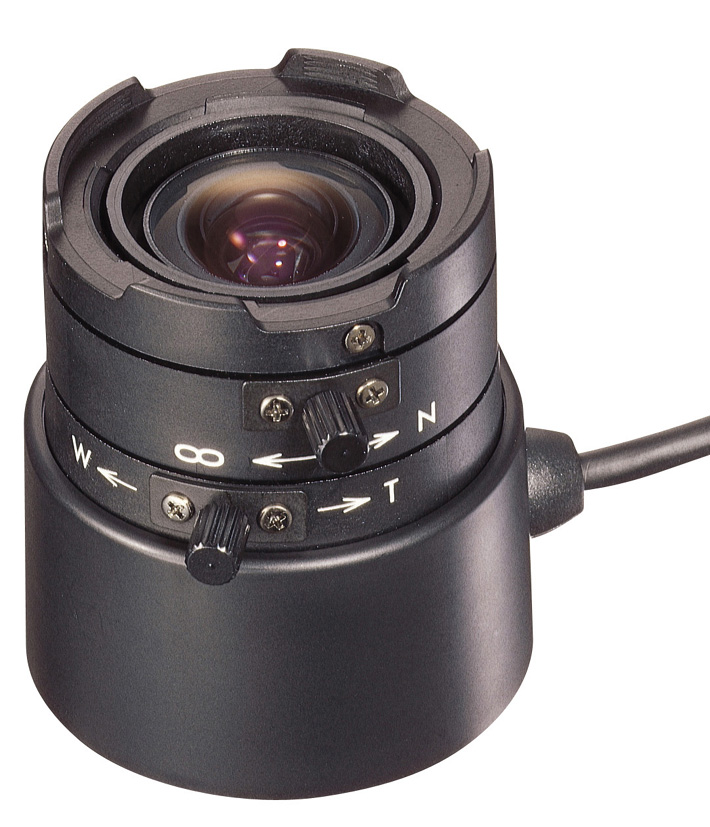

CT-2ZMGA 2x Varifocal Lens

CT-2ZMGA

The CT-2ZMGA is a DC-input type, auto-iris varifocal lens for CCTV cameras employing the 1/3 type CCD.

Specification
Focal Length 3.5 - 8 mm
Maximum Aperture Ratio 1:1.4 - 1.8
Image Format Size 4.8 (H) × 3.6 (V) mm
Angle of View Horizontal: 77.6゜ - 35.4゜
Vertical: 57.6゜ - 26.6゜
Opposite angle: 97.9゜ - 44.3゜
Aperture Range WIDE: F1.4 - F360
TELE: F1.8 - F360
Minimum Object Distance 0.4 m
Back Focus Length 13.1 - 8.3 mm
Flange Back Length 12.5 mm
Lens Mount CS mount
Operating Temperature -20 ℃ to +50 ℃
Finish Black, matte
Dimensions 46.3 (W) × 38.6 (H) × 43.5 (D) mm
Weight 48 g
