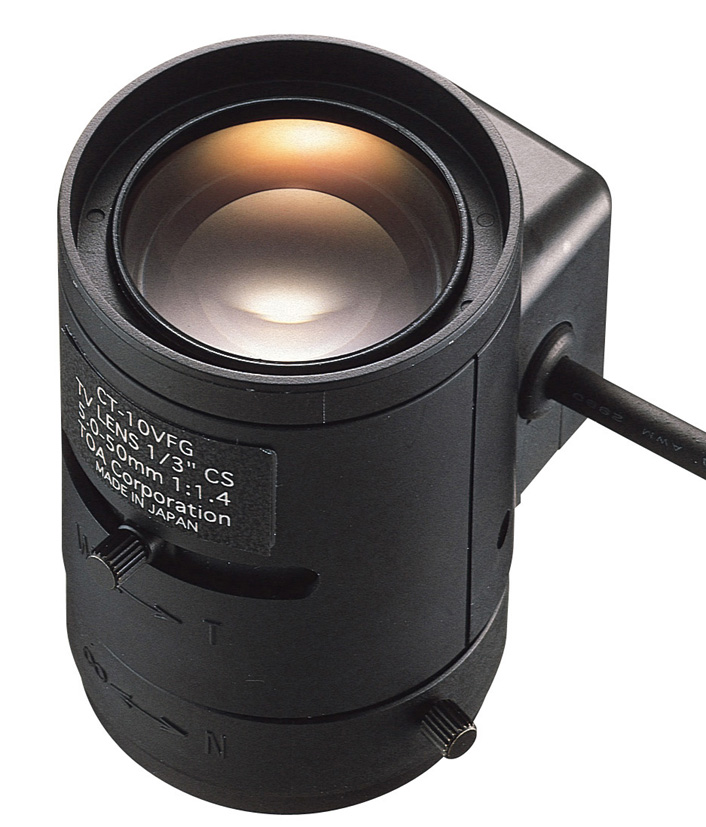

CT-10VFGA 10x Motorized Zoom Lens

CT-10VFGA

CT-10VFGA DC auto iris 10x variforcal lens is designed for use with 1/3 type or 1/4 type CCD cameras.

Specification
Focal Length 5.0 - 50 mm
Maximum Aperture Ratio 1:1.4 - 2.0
Angle of View 1/3 type CCD… Horizontal: 53.6゜ - 5.6゜
Vertical : 40.3゜ - 4.2゜
1/4 type CCD… Horizontal: 40.3゜ - 4.2゜
Vertical : 30.1゜ - 3.1゜
Aperture Range F1.4 - F360
Object Distance - 1.0 m (39.37")
( - 0.3 m (11.81") when the Tele/Wide knob is set to W position)
Back Focus Length 10.05 - 11.81 mm
Flange Back Length 12.5 mm
Lens Mount CS mount
Operating Temperature -20℃ to +60℃ (-4゜F to +140゜F)
Finish Black
Dimensions 57.7 (W) × 40 (H) × 59.2 (D) mm (2.27" × 1.57" × 2.33")
Weight 84 g (0.19 lb)
