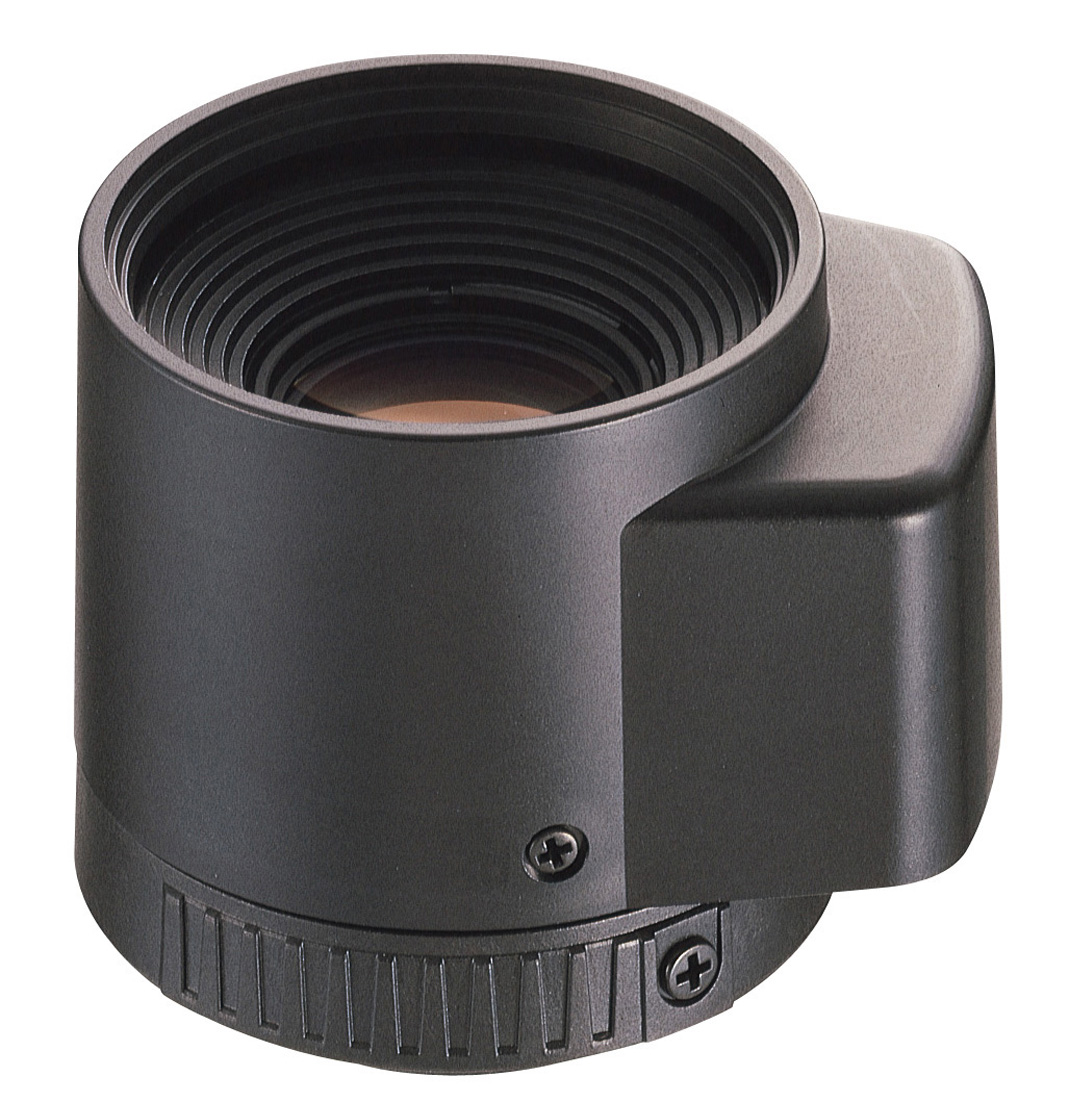

CT-0812GA Standard-Angle Lens

CT-0812GA

The CT-0812GA is a DC-input type, auto-iris standard lens for CCTV cameras employing the 1/3 type CCD.

Specification
Focal Length 8 mm ±5%
Maximum Aperture Ratio 1:1.2
Image Format Size 4.8 (H) × 3.6 (V) mm
Angle of View Opposite angle: 41.4゜
Horizontal: 33.3゜
Vertical: 25.1゜
Aperture Range F1.2 - F200
Minimum Object Distance 0.3 m
Back Focus Length 7.73 mm
Flange Back Length 12.5 mm
Lens Mount CS mount
Operating Temperature -20℃ to +50℃
Finish Black, matte
Dimensions 36.8 (W) × 43.5 (H) × 33.8 (D) mm
Weight 44 g
